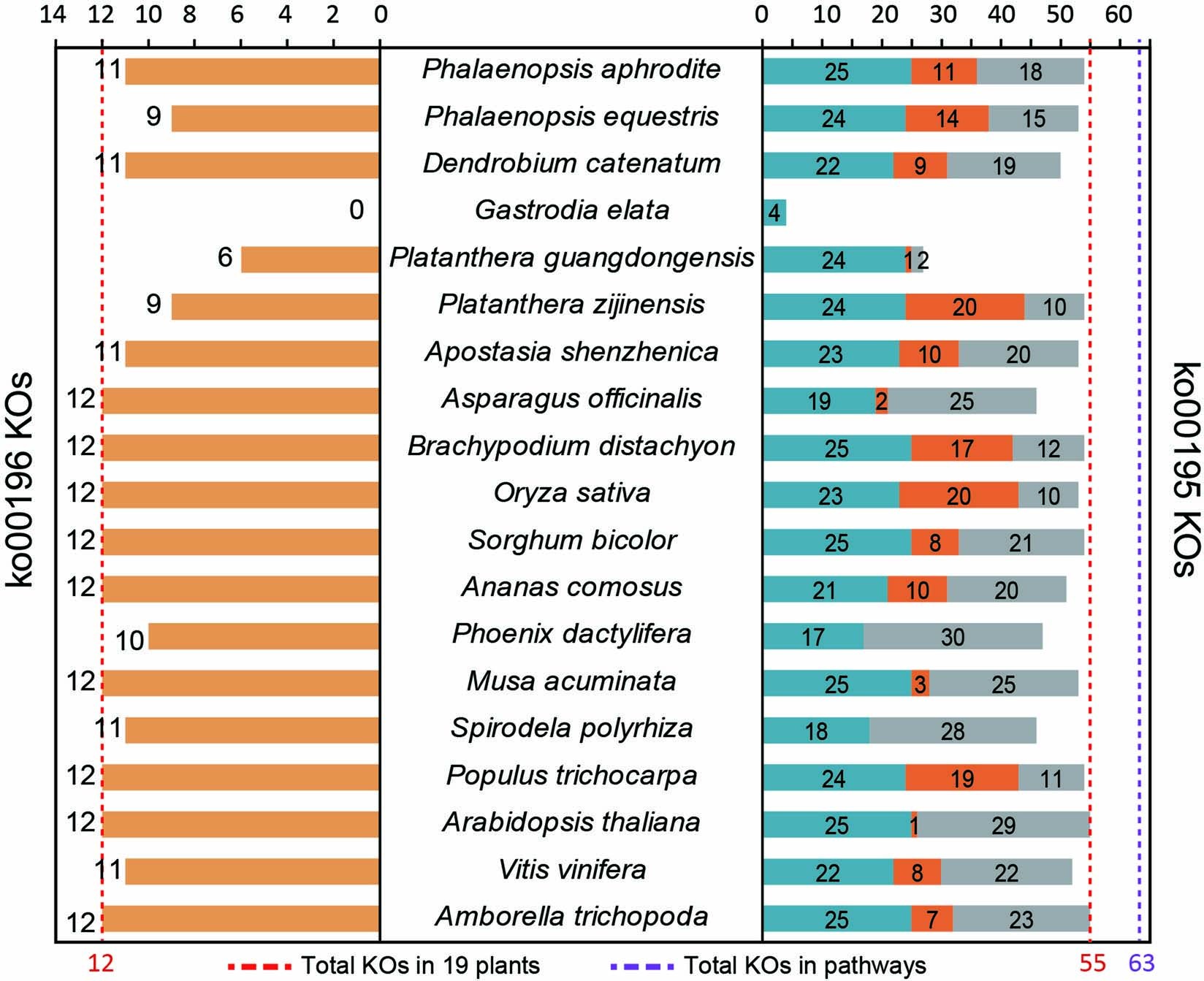

Extended Data Fig. 3: Orthologs in the pathways of Photosynthesis.
From: Genomes of leafy and leafless Platanthera orchids illuminate the evolution of mycoheterotrophy
Orthologs from 19 species in the pathways of Photosynthesis - antenna proteins (ko00196 for green plants, left) and Photosynthesis (ko00195, right). Bar colors from left to right: dark yellow, the KOs only found in nuclear genome in ko00196; cyan, the KOs that only found in nuclear genome in ko00195; orange, the KOs found in both nuclear and chloroplast genomes in ko00195; grey, the KOs only found in chloroplast genome in ko00195.
