Extended Data Fig. 6: BPC TFs bind to the ELC-specific THS. | Nature Plants

Extended Data Fig. 6: BPC TFs bind to the ELC-specific THS.

From: Dynamic chromatin accessibility deploys heterotypic cis/trans-acting factors driving stomatal cell-fate commitment

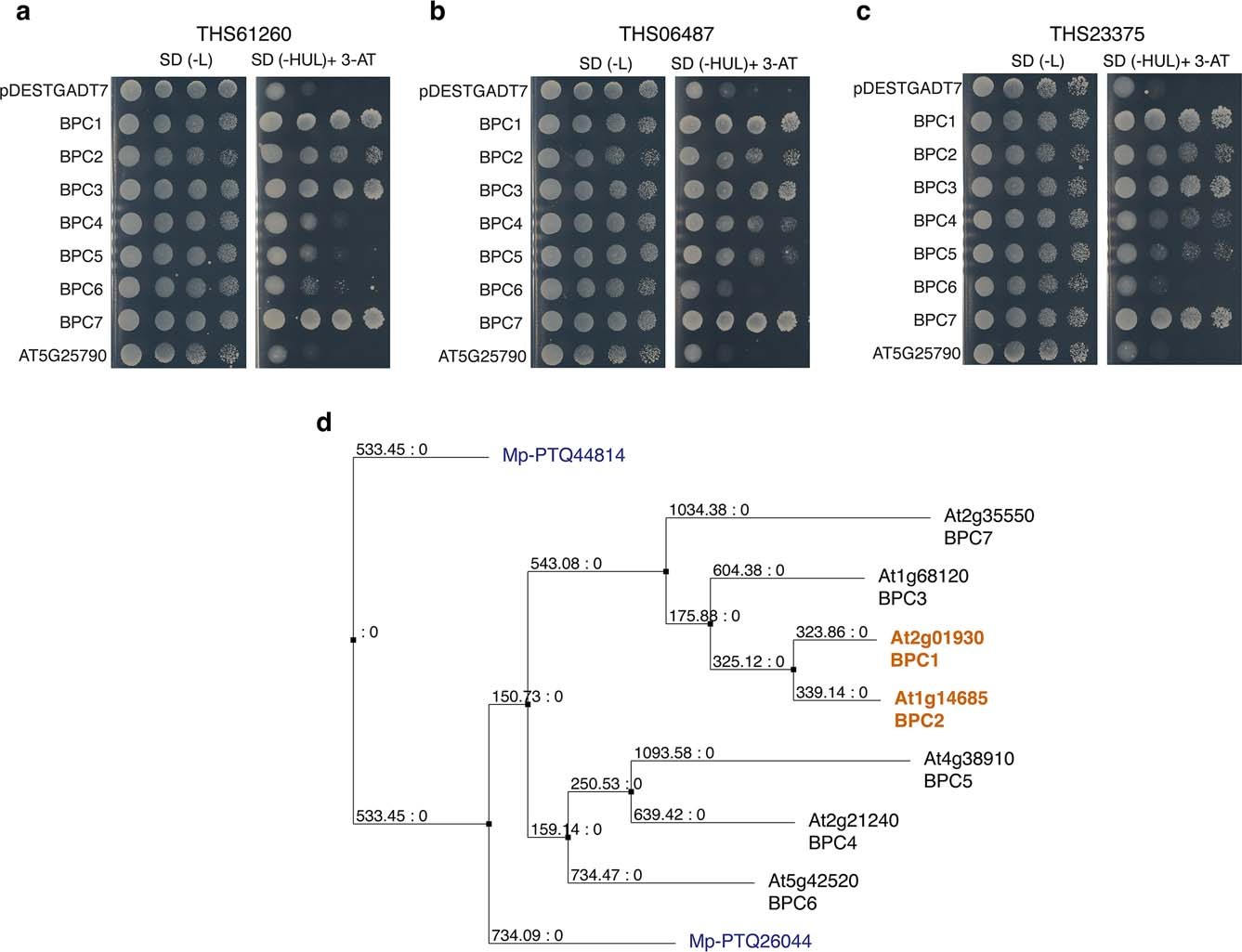

Extended Data Fig. 6: BPC TFs bind to the ELC-specific THS.The alt text for this image may have been generated using AI.

(a-c) Yeast one hybrid analysis showing class I BPCs and BPC7 bind to ELC specific THSs, THS61260 (a), THS06487 (b), and THS23375 (c). AT5g25790 and pDESTGADT7 are negative control in this study. THS61260 is located within the promoter of SPCH. (d) Phylogenetic tree analysis of Arabidopsis BPCs. Full amino acid sequences were subjected to Neighbor Jointing analysis with Percent Accepted Mutation (PAM) 250 matrices. Marchantia polymorpha BPC proteins were used as an outgroup.
