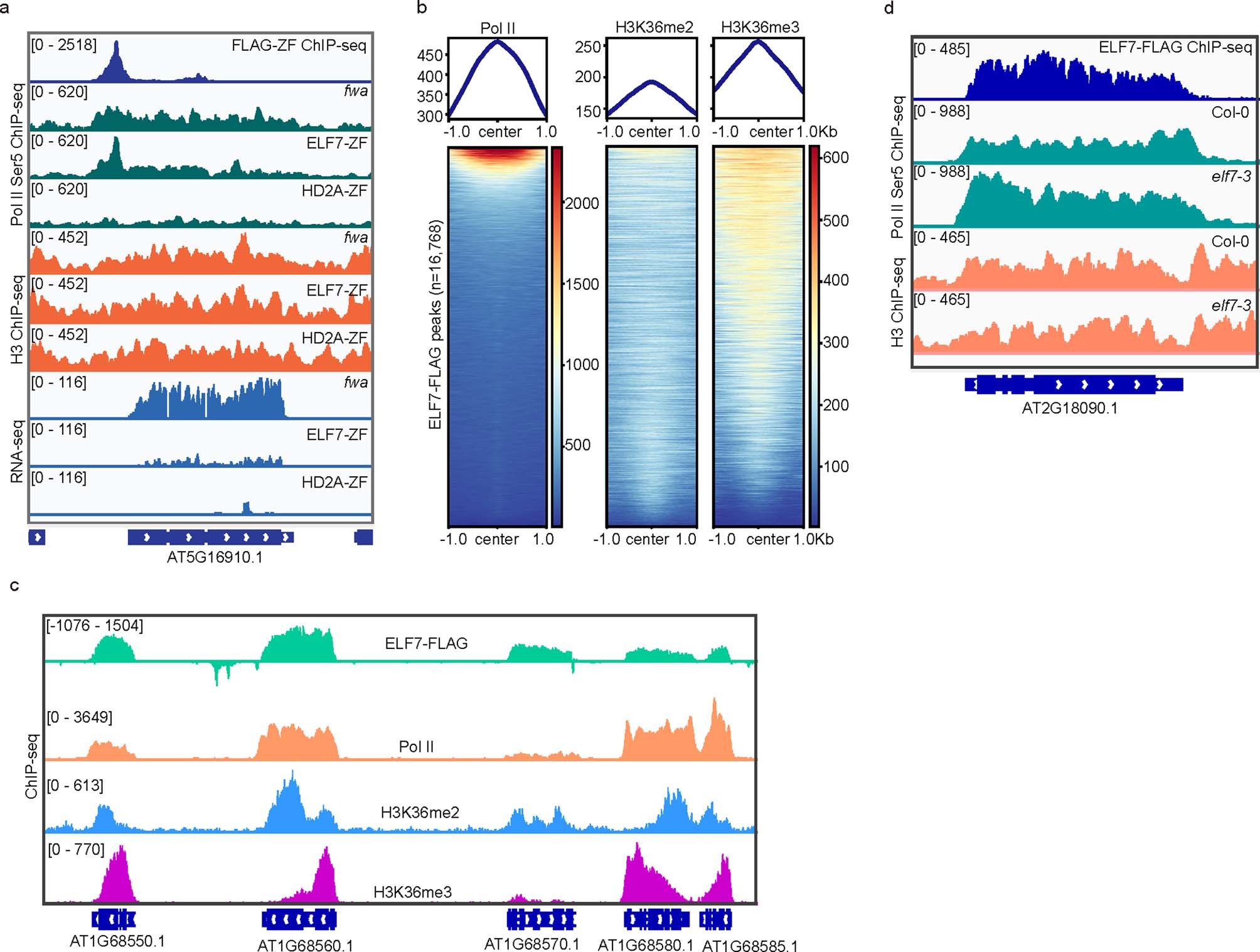

Extended Data Fig. 7: Target gene silencing by ELF7-ZF.
From: A gene silencing screen uncovers diverse tools for targeted gene repression in Arabidopsis
a, Screenshots of Pol II Ser5 and H3 ChIP–seq and RNA-seq signals over a representative ZF off-target site in fwa, ELF7-ZF, and HD2A-ZF. b, Heat maps and metaplots showing Pol II Ser5, H3K36me2 and H3K36me3 ChIP–seq signals over ELF7-FLAG ChIP–seq peaks (n = 16,768) in Col-0. c, Screenshots of ELF7-FLAG, Pol II Ser5, H3K36me2 and H3K36me3 ChIP–seq signals over five representative ELF7 binding genes. d, Screenshots of ELF7-FLAG, Pol II Ser5 and H3 ChIP–seq signals in Col-0 and elf7-3 mutants over a representative ELF7 targeting gene.
