Extended Data Fig. 5: Using cluster-based method to annotate snRNA-seq datasets.

From: Integrated single-nucleus and spatial transcriptomics captures transitional states in soybean nodule maturation

Extended Data Fig. 5

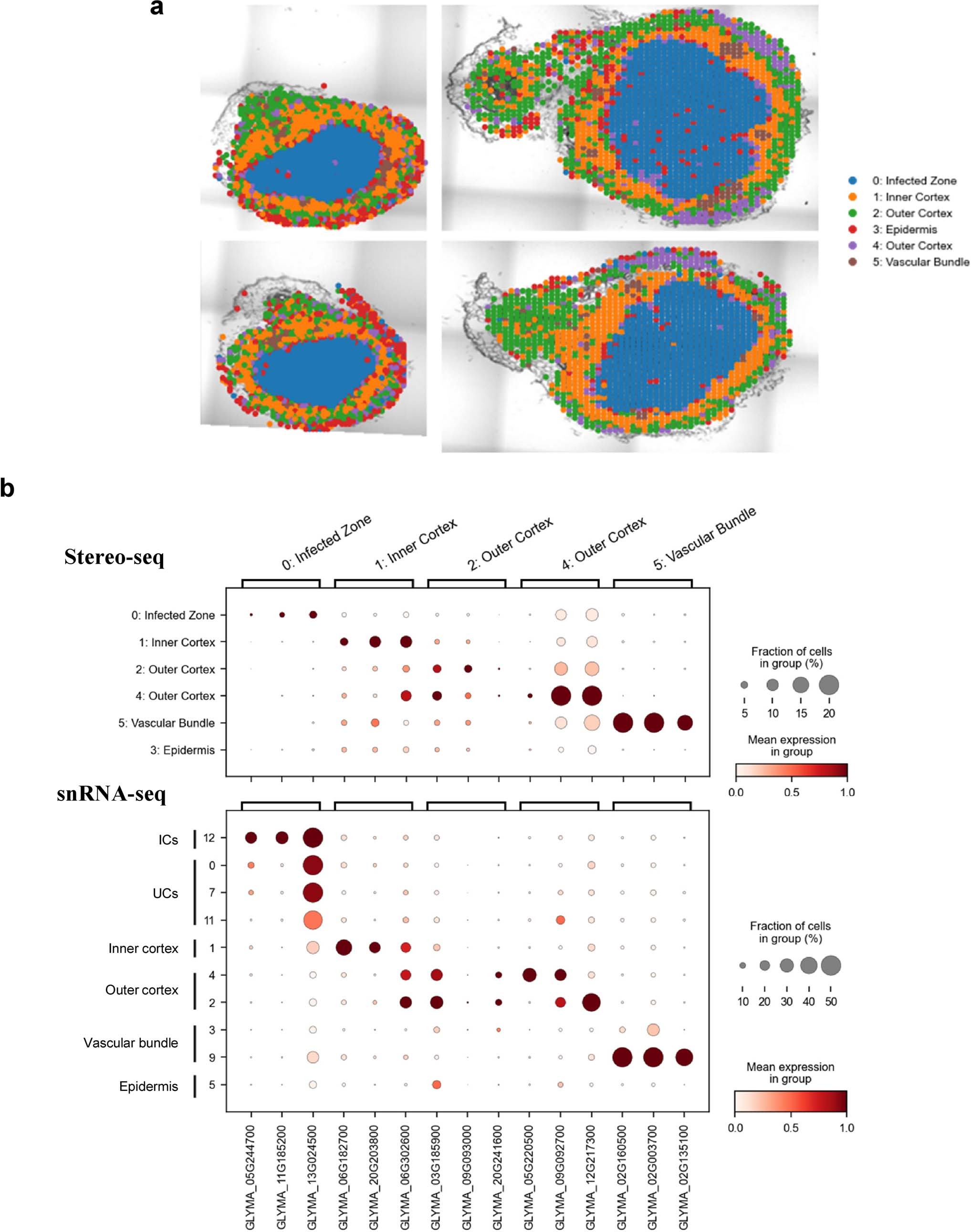

a. Clustering and annotation results of Stereo-seq datasets. b. Expression patterns of spatially transcriptome-identified cell-type upregulated genes in Stereo-seq (upper panel) and snRNA-seq (lower panel). We did not identify up-regulated genes in the epidermis from the spatial transcriptomes, so they were not mapped.
