Extended Data Fig. 6: The expression of CENH3 decreased in cenh3-8. | Nature Plants

Extended Data Fig. 6: The expression of CENH3 decreased in cenh3-8.

From: A simple and highly efficient strategy to induce both paternal and maternal haploids through temperature manipulation

Extended Data Fig. 6

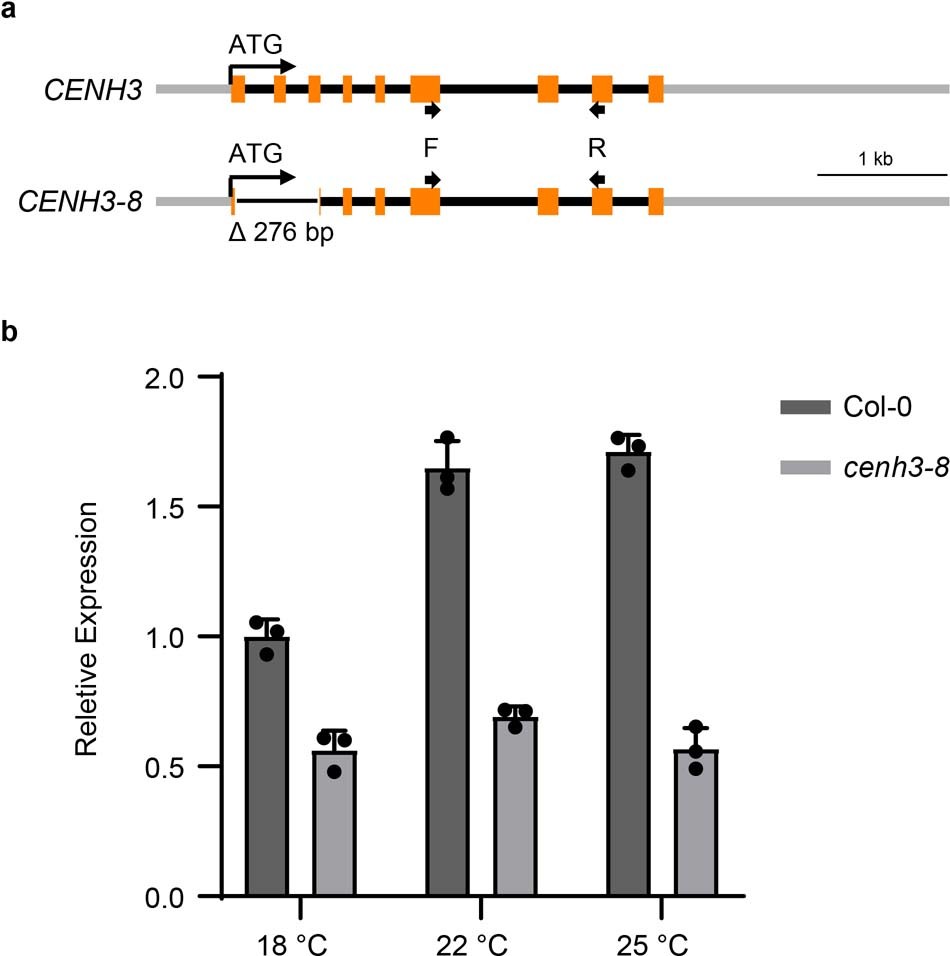

a, Schematic diagram of CENH3 and cenh3-8 structure. F and R represent a pair of primers used in qRT-PCR. b, Representative result from qRT-PCR analysis of CENH3 transcript levels in inflorescences of Col-0 and cenh3-8 grown under different conditions. PUX7 was used as an endogenous control for normalization. Values are the mean ± s.d. of three technical samples. Three times experiments were repeated independently with similar results.
