Extended Data Fig. 5: The network of TaBBM and TaWOX5.

From: Uncovering the transcriptional regulatory network involved in boosting wheat regeneration and transformation

Extended Data Fig. 5

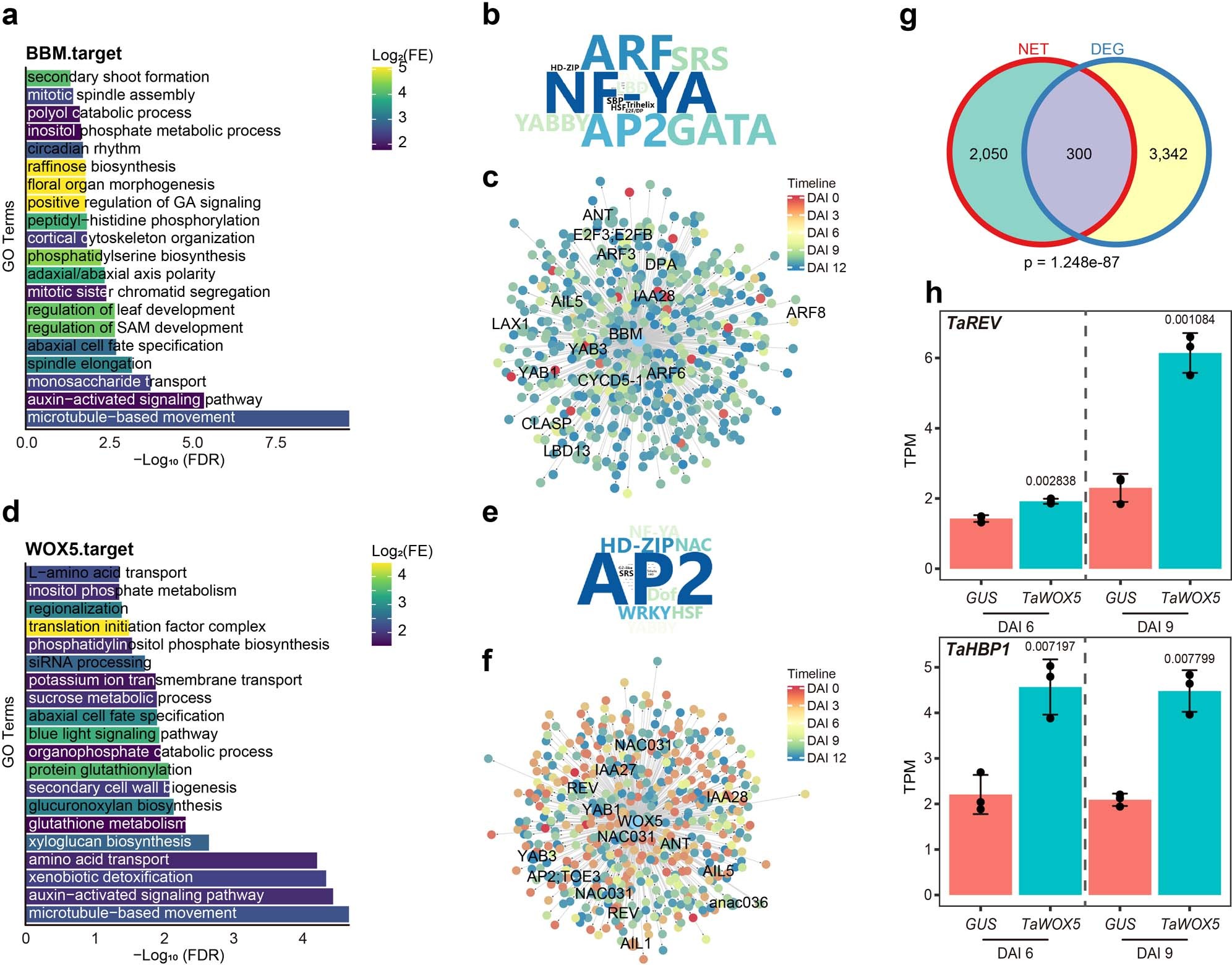

a, GO enrichment analysis of TaBBM’s target genes. b, Enriched TF family of TaBBM’s target genes. Front size shows degree of enrichment (–Log10(p.adj)). c, The network of TaBBM. d, GO enrichment analysis of TaWOX5’s target genes. e, Enriched TF family of TaWOX5’s target genes. Front size shows degree of enrichment (–Log10(p.adj)). f, Network of TaWOX5. g, Intersection of TaWOX5 target genes and DEGs caused by TaWOX5 transformation (two sided Fisher’s exact test). NET represents the target genes of TaWOX5 in the TRN. DEG represents the DEGs of TaWOX5 transformation compared GUS transformation at DAI 6 and DAI 9. h, The expression patterns of TaREV and TaSOUL-1 of transformation of GUS and TaWOX5 at DAI 6 and DAI 9 (two sided Student’s t-test). Data shown as mean values +/− s.d. of 3 replicates.
