Extended Data Fig. 1: Sequence alignments of ABCG family ABA transporters in Arabidopsis thaliana. | Nature Plants

Extended Data Fig. 1: Sequence alignments of ABCG family ABA transporters in Arabidopsis thaliana.

From: Structural basis for abscisic acid efflux mediated by ABCG25 in Arabidopsis thaliana

Extended Data Fig. 1: Sequence alignments of ABCG family ABA transporters in Arabidopsis thaliana.

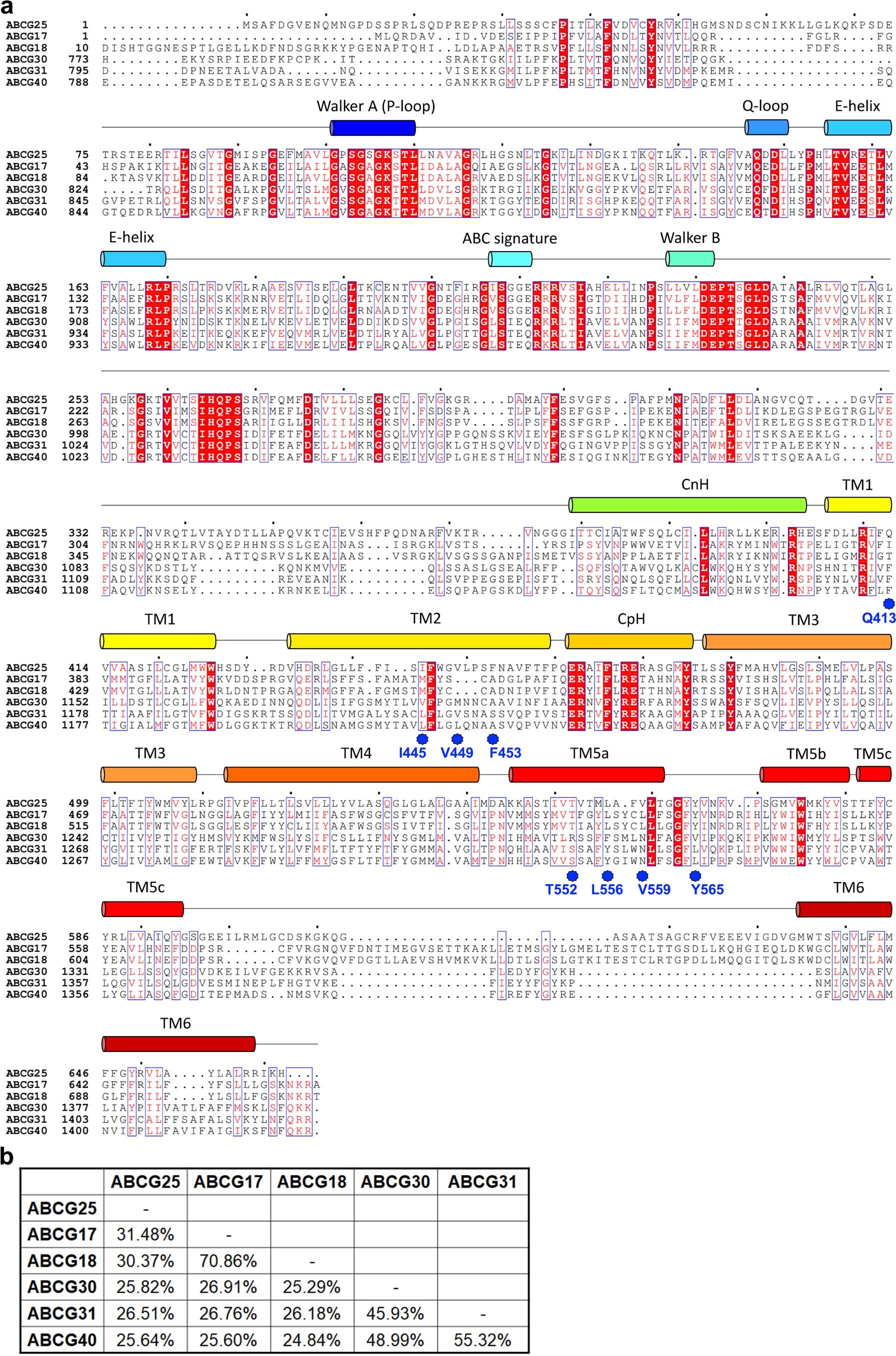

a, Sequence alignments of the six ABCGs as ABA transporters in Arabidopsis thaliana. The amino acid sequences are available at Uniprot (https://www.uniprot.org) with the following accession codes: ABCG25 - Q84TH5, ABCG17 - Q9M2V6, ABCG18 - Q9M2V5, ABCG30 - Q8GZ52, ABCG31 - Q7PC88, ABCG40 - Q9M9E1. Sequences are aligned using Clustal O (1.2.4). Secondary structural elements of ABCG25 are indicated above the sequence. Invariant amino acids are shaded red. The ABA interacting residues are indicated by blue stars. b, Amino acid sequence identities between the ABCG family ABA transporters in Arabidopsis thaliana.
