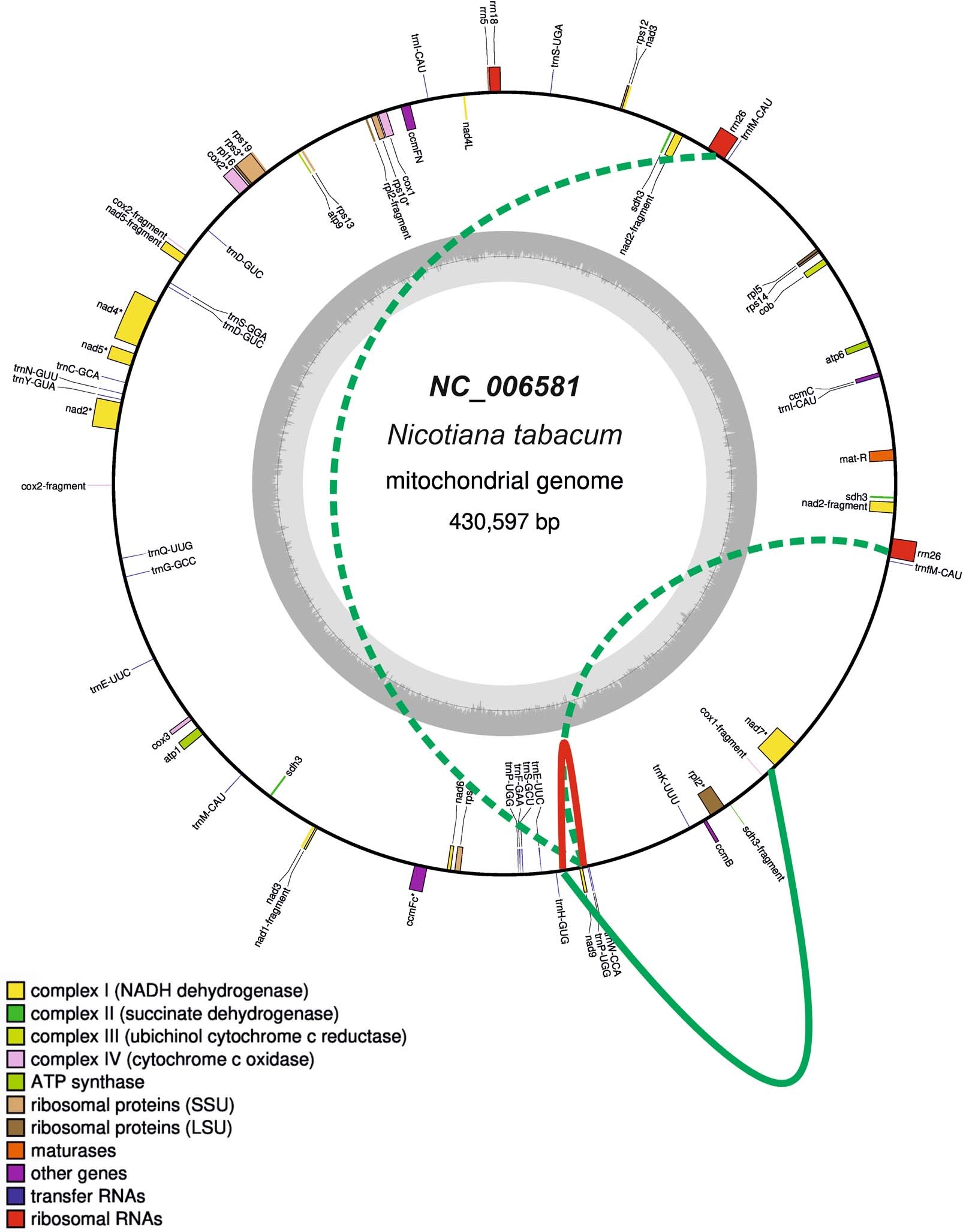

Extended Data Fig. 2 : Mitochondrial genome configuration in mutant line Δnad9-13.
From: Targeted knockout of a conserved plant mitochondrial gene by genome editing
Recombination events are marked in green and the net deletion is indicated in red.
