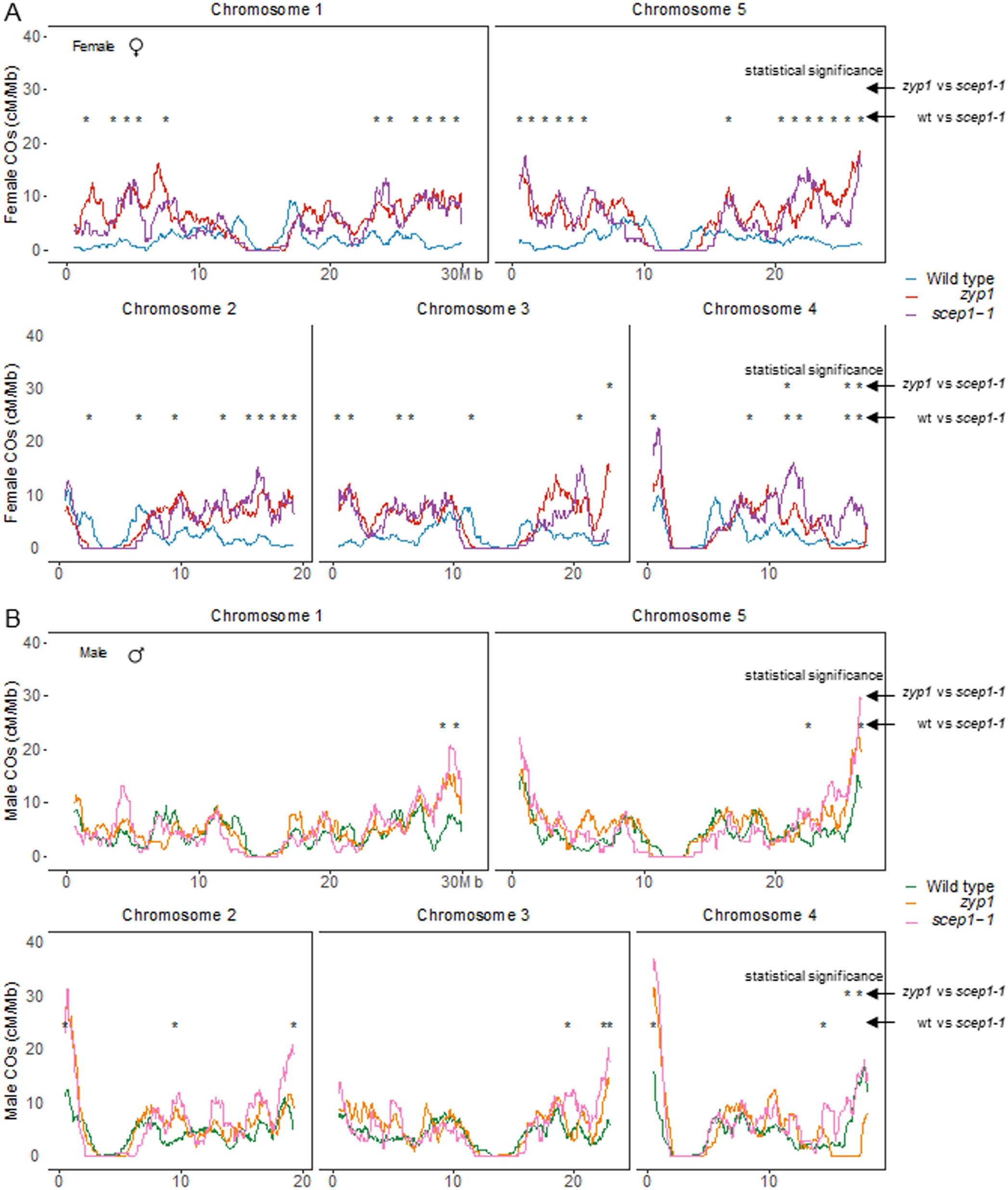

Extended Data Fig. 3: The distribution of COs along the five chromosomes.
From: SCEP1 and SCEP2 are two new components of the synaptonemal complex central element
The distribution of COs along chromosomes in female (A) and male (B) wild type, zyp1 and scep1-1. The centromere and pericentromeric regions are indicated by gray and blue shading, respectively. Analysis is done with 1-Mb windows and 50-kb sliding steps. For pericentromeric regions and each non-overlapping 1-Mb window along chromosome arms, two-sided Pearson′s Chi-squared test was used to examine the difference between wild type and scep1-1, zyp1 and scep1-1 in female and male populations separately. Windows with p-value (corrected with the FDR method) < 0.05 were marked by stars.
