Extended Data Fig. 6: XVE::amiR-LHP1 lines show an increase in IIL1 levels upon estradiol induction.

From: SUMO protease FUG1, histone reader AL3 and chromodomain protein LHP1 are integral to repeat expansion-induced gene silencing in Arabidopsis thaliana

Extended Data Fig. 6

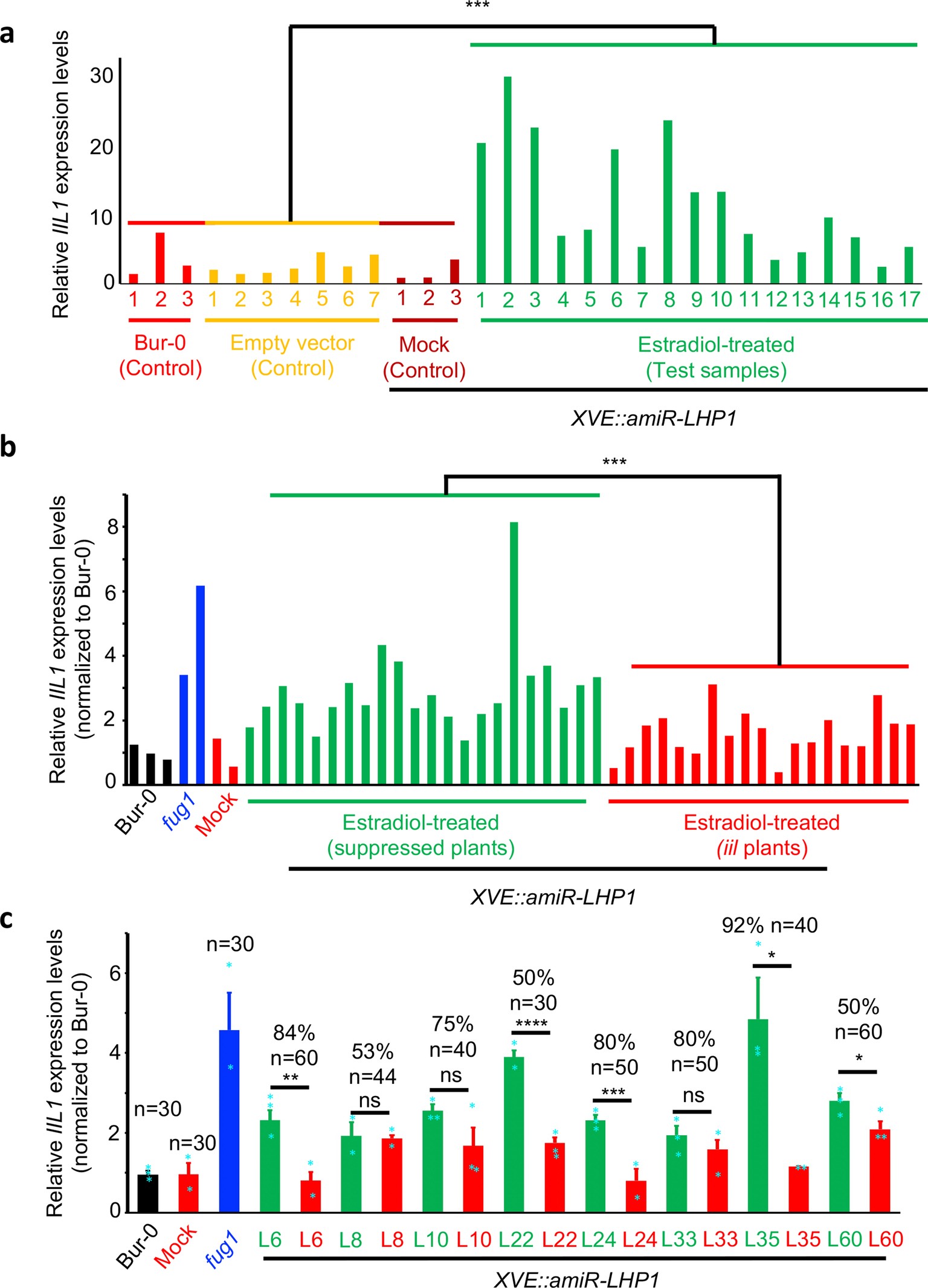

a) Relative IIL1 expression levels. Comparison is made between Bur-0, empty vector controls as well as mock treated plants with that of estradiol treated samples in one-way ANOVA with the samples being separated as controls vs test. b) Comparison of IIL1 expression in plants that show the suppression of the iil phenotype and those that do not analysed together independent of the specific transgenic lines in one-way ANOVA c) Comparison of IIL1 expression in plants that show the suppression of the iil phenotype and those that do not from independent T2 lines. Expression analysis is from 2–3 independent plants as shown by individual data points on each of the bar graphs. The percentage of plants that show the suppression and the number of plants analysed are shown above each of the transgenic lines. The comparison of gene expression in this dataset is by two-sided Student’s T-test. Error bars represent standard errors of mean. p-values: *<0.05, **<0.01, ***<0.001, ****<0.0001.
