Fig. 5: SCEP3 strongly interacts with SC proteins in Y2H. | Nature Plants

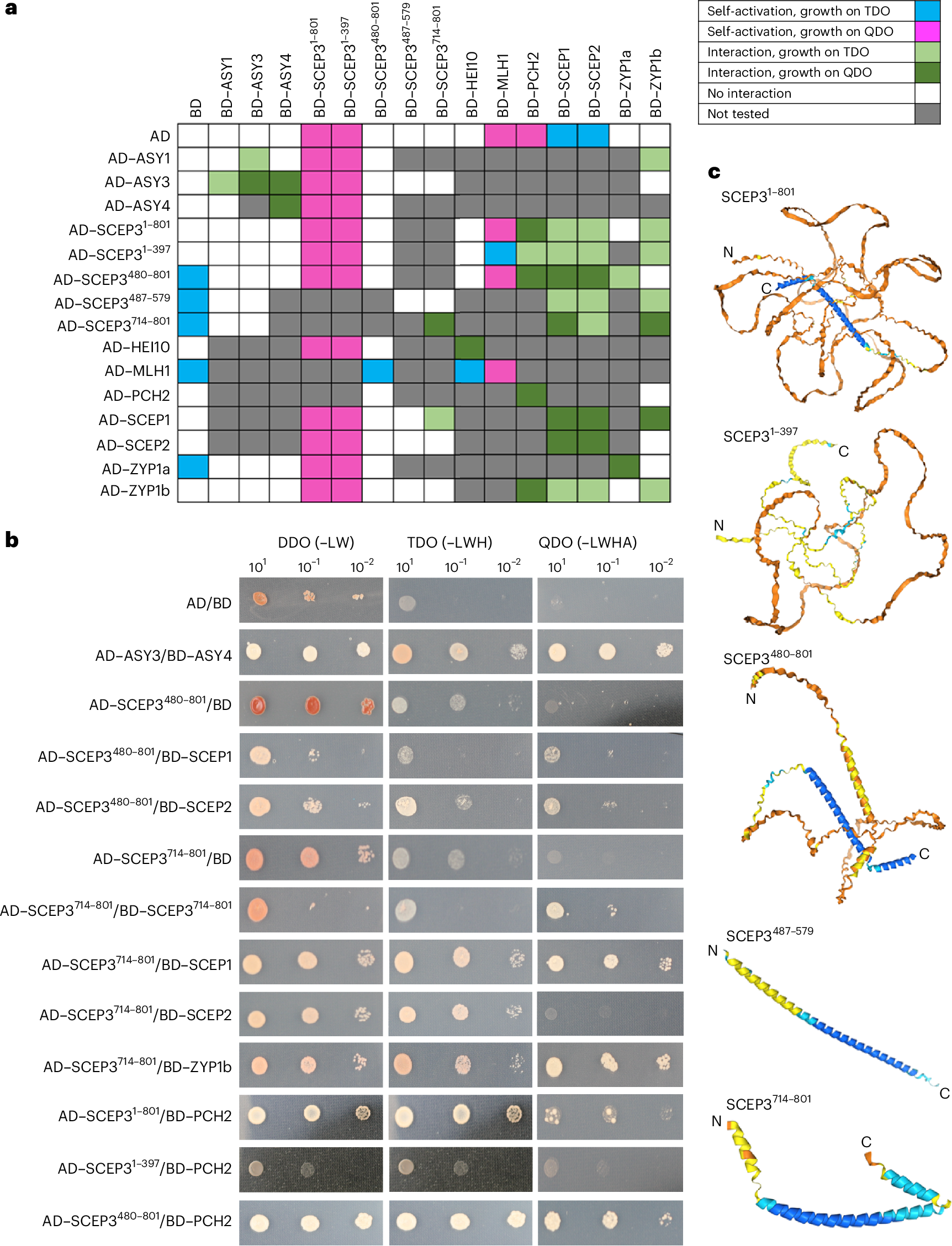

Fig. 5: SCEP3 strongly interacts with SC proteins in Y2H.

From: SCEP3 initiates synapsis and implements crossover interference in Arabidopsis

Fig. 5: SCEP3 strongly interacts with SC proteins in Y2H.

a, A summary table of proteins tested for interactions. b, Double dropout (DDO (−LW), lacking leucine and tryptophan), triple dropout (TDO (−LWH), lacking leucine, tryptophan and histidine) and quadruple dropout (QDO (−LWHA), lacking leucine, tryptophan, histidine and adenine) plates showing the growth of yeast with controls and tested gene combinations spotted in serial dilutions. AD, activation domain; BD, binding domain. c, AlphaFold 3 predictions of SCEP3 protein structures of the sections used in Y2H.
