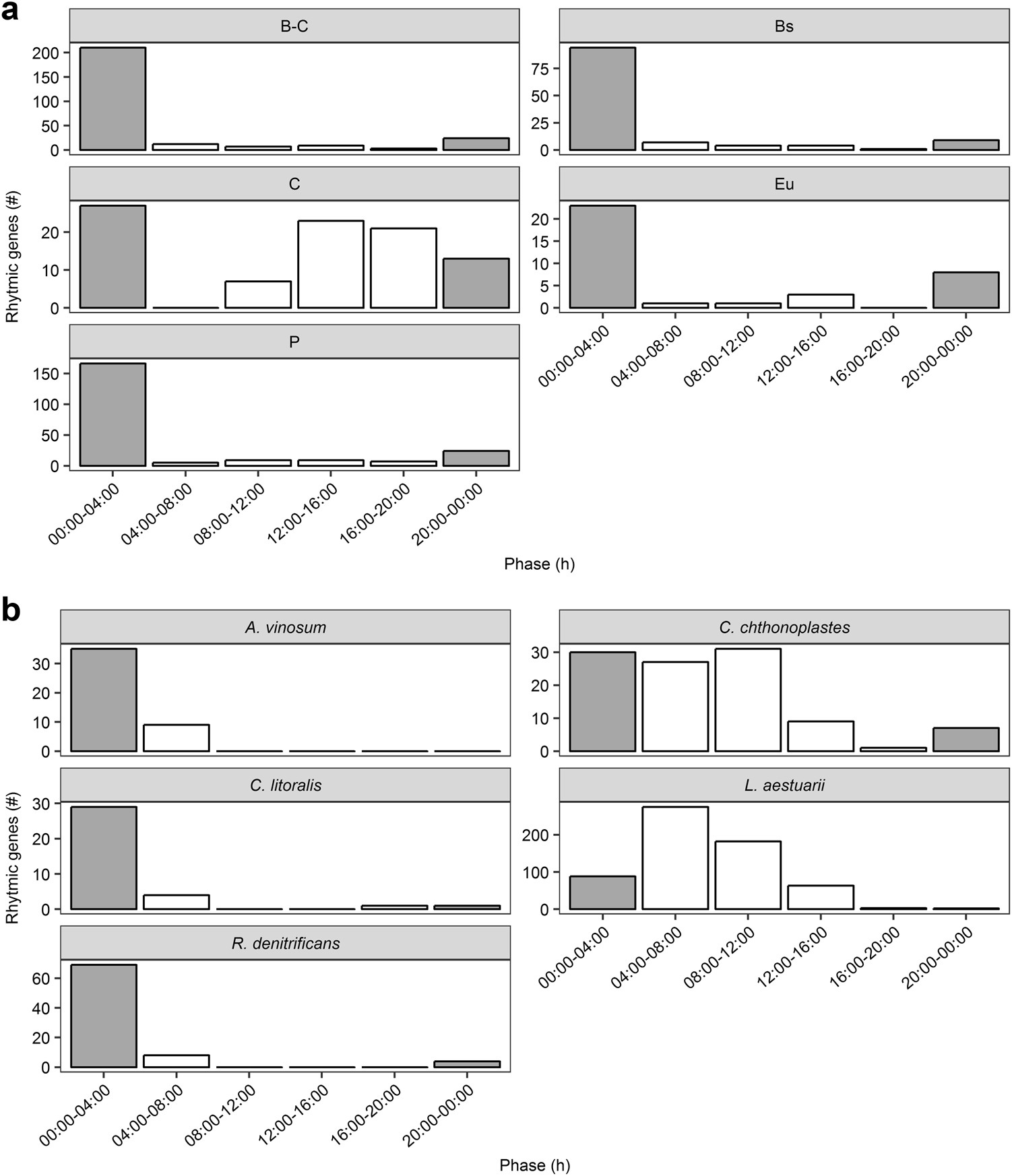

a, b Peak expression phase distribution (metaCycle) of the rhythmic genes of the MG-RAST datasets (a) and of the recruited genomes (b). Clustered bar charts in a and b plot the peak expression phase (h) distribution of rhythmic genes against their count (#). Bar coloration indicates light (white) and dark (gray) sampling times
