Fig. 2

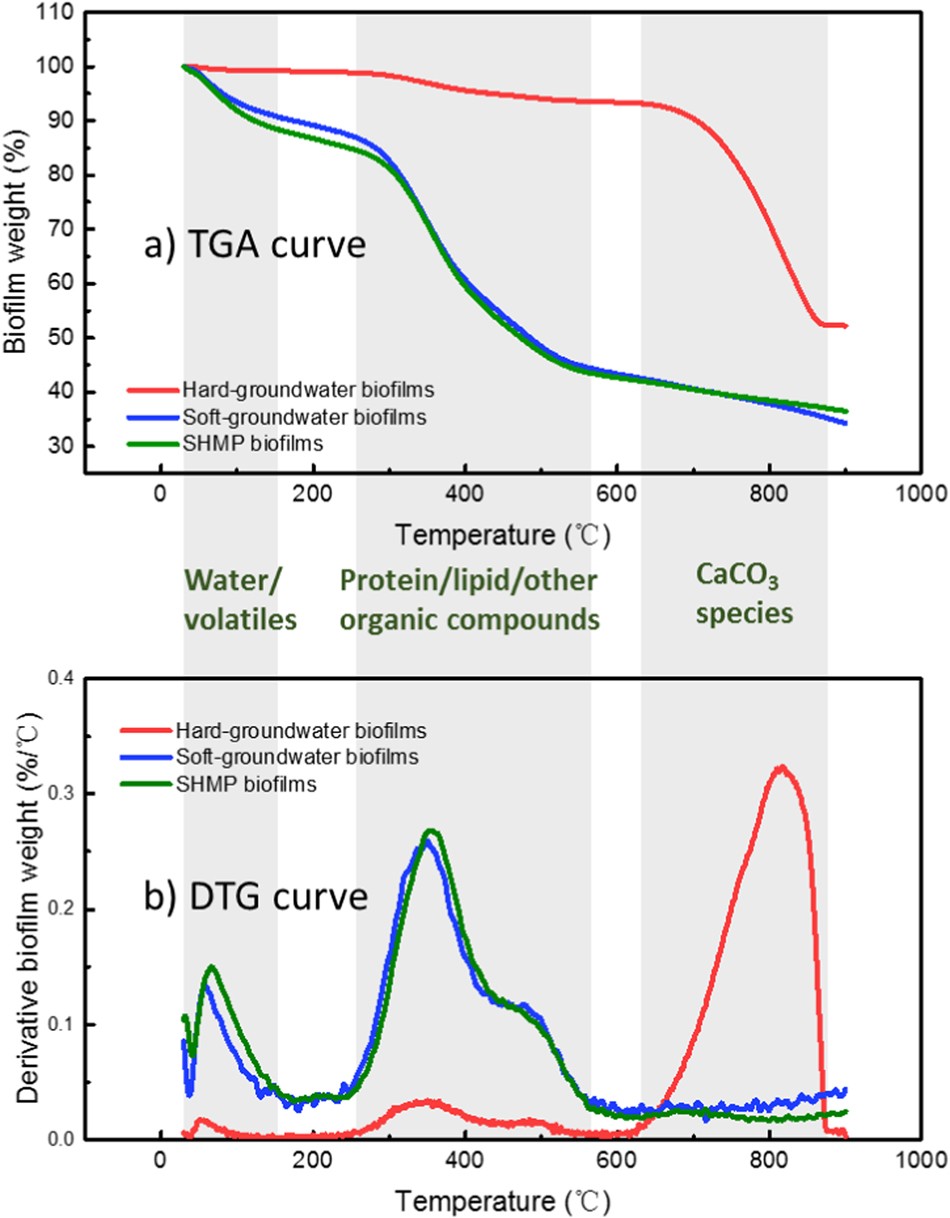

a TGA curve showing the percentage of biofilm weight at a certain temperature with respect to the initial biofilm weight as a function of temperature and b derivative thermogravimetric analysis (DTG) curve showing the change of biofilm decomposition rate as a function of temperature. The error bars represent the standard deviation of the measurements for the replicates
