Fig. 5: Cross-resistance and collateral sensitivity to different antibiotics.

From: The evolutionary trajectories of P. aeruginosa in biofilm and planktonic growth modes exposed to ciprofloxacin: beyond selection of antibiotic resistance

Fig. 5

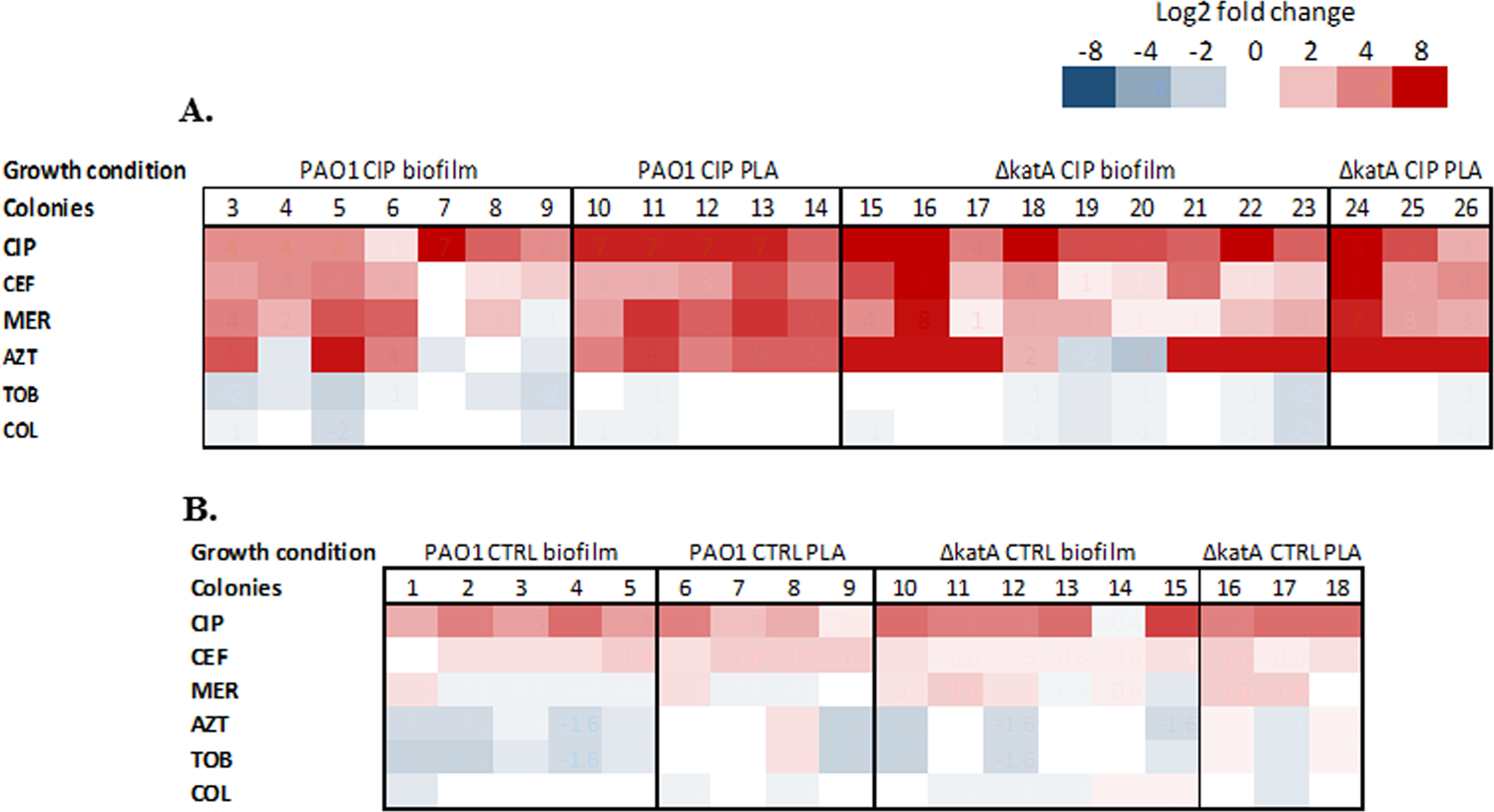

Heat map showing the changes in the resistance levels to six classes of antibiotics. Results shown are the log2 fold change in the minimum inhibitory concentrations (MIC) (mg/L) in the evolved CIP-resistant isolates compared to the sensitive ancestral strain. a The relative changes in the MIC levels in CIP-resistant isolates recovered from CIP-evolved populations. b The relative changes in the MIC levels in CIP-resistant isolates recovered from CTRL-evolved populations. CIP ciprofloxacin, CEF ceftazidime, MER meropenem, AZT aztreonam, TOB tobramycin, COL colistin.
