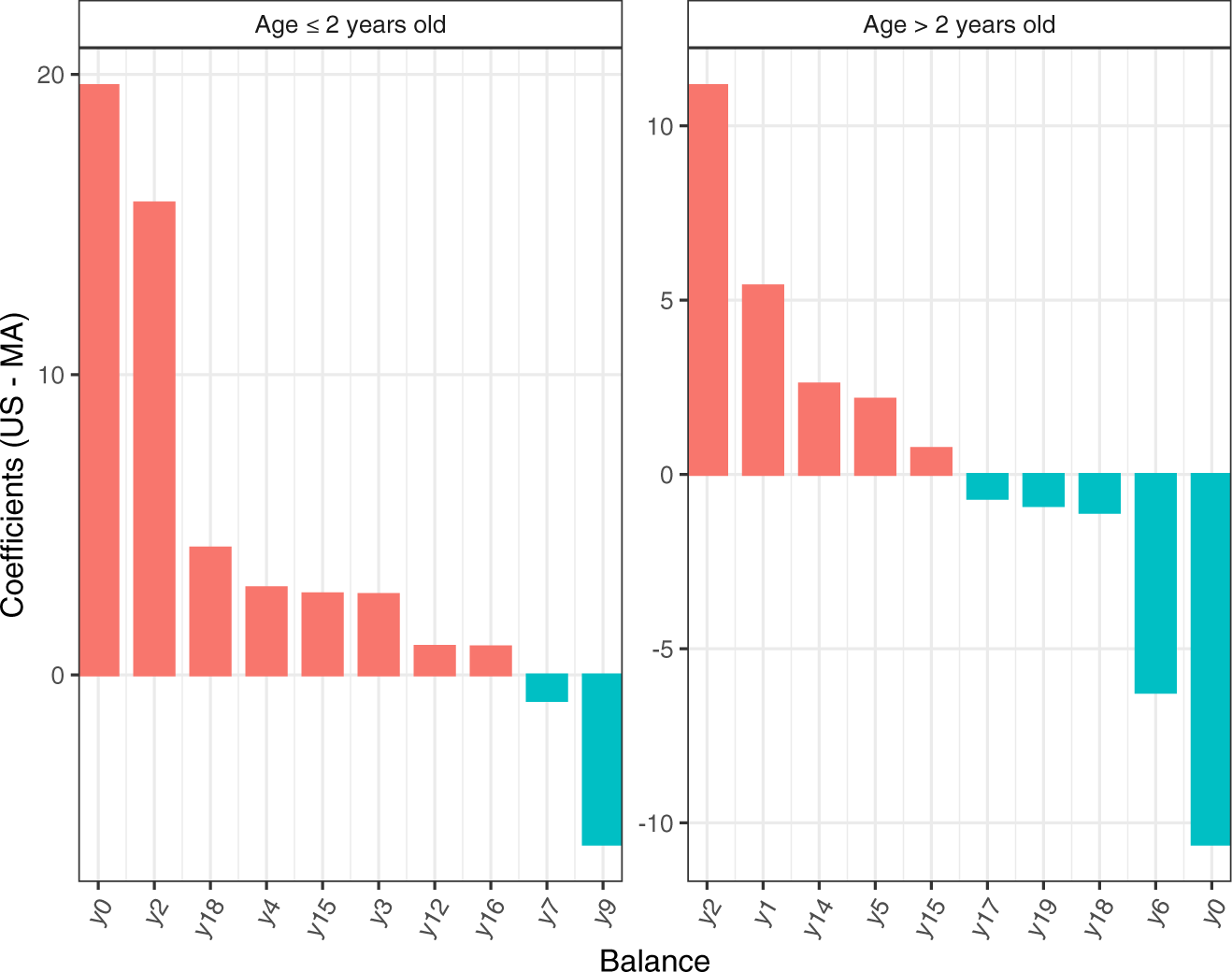

Fig. 6: Waterfall plot visualizing coefficient (US: MA) for top 20 balances identified by gneiss using the global gut microbiota data60.
From: Analysis of microbial compositions: a review of normalization and differential abundance analysis
We subset the dataset to subjects whose nationality is Malawi (MA) and USA (US), with sample size (MA:US) = (47:50) for the group of age ≤2 years old, and (MA:US) = (36:260) for the group of age >2 years old. The columns of the plot represent coefficients, and the rows of the plot represent balances. BH procedure57 was applied to correct for multiple comparisons, and coefficients with FDR corrected p-values < 0.05 are discarded.
