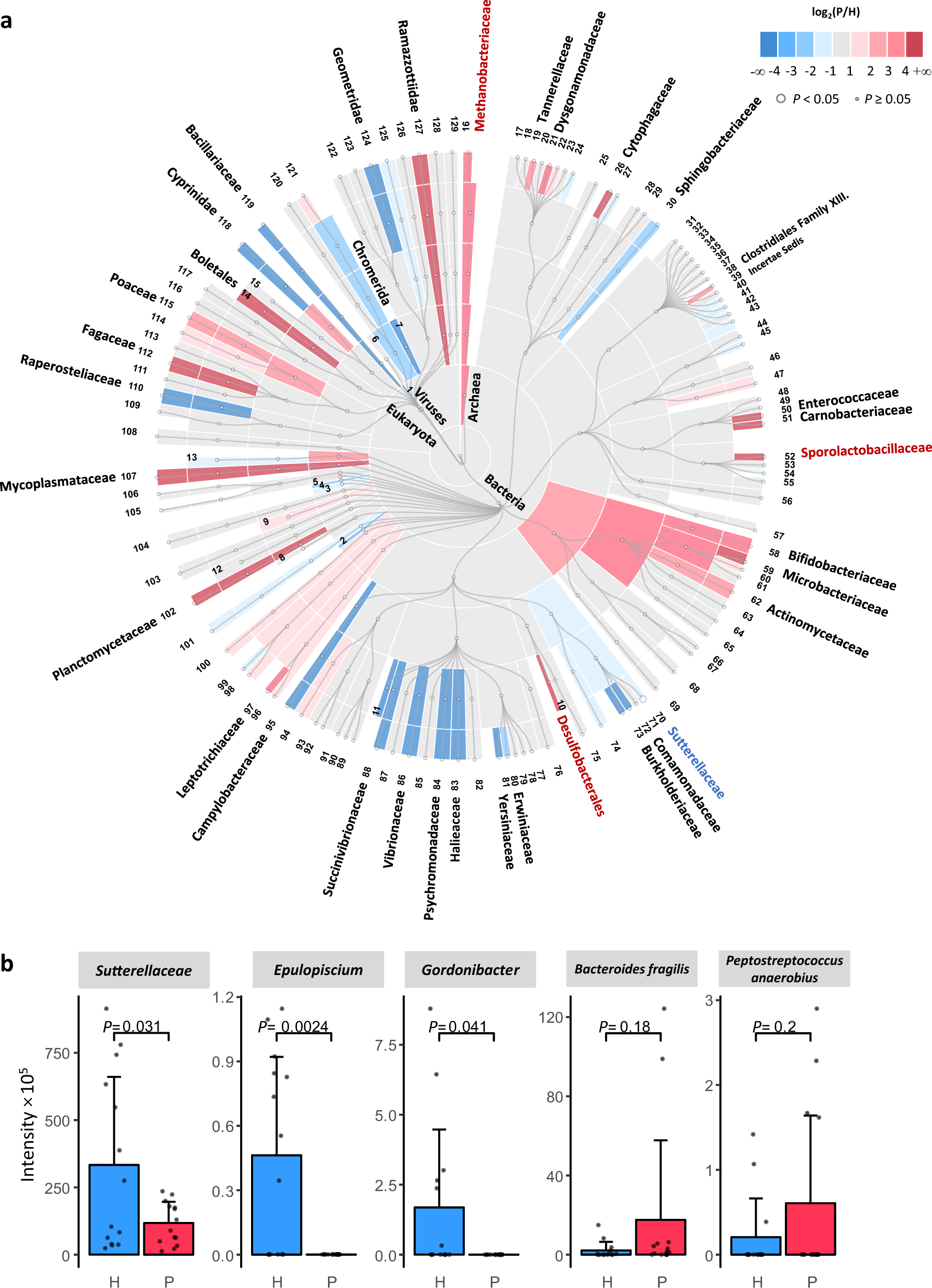

Fig. 2: Taxonomic abundances of the gut microbiome of the CRC patients (P) and healthy crowds (H).
From: Metaproteomics characterizes human gut microbiome function in colorectal cancer
a Cladogram illustrating taxa (domain to family) abundances in the two groups. Colors indicate the fold change log2(P/H). Large circles indicate P value < 0.05. Information on the phylum, class, order, and family of the labeled numbers is given in Supplementary Data 6. b Bar charts showing the selected differential families, genera, and species between the CRC patients and the healthy controls. The bars show the average of 14 samples in each group. Error bars indicate standard deviation. Individual data points are overlaid as dots. Taxa are selected for presentation in a and/or b if significant differences of their abundance between CRC patients and healthy people have been reported in previous studies or are observed (P value < 0.05) in this work. The selected classes and families are highlighted in a with red or blue color of the taxa name. Source data are provided as a Source Data file.
