Fig. 7: Replication activity of Anaerobutyricum spp. after 4 weeks of treatment per dose group. | npj Biofilms and Microbiomes

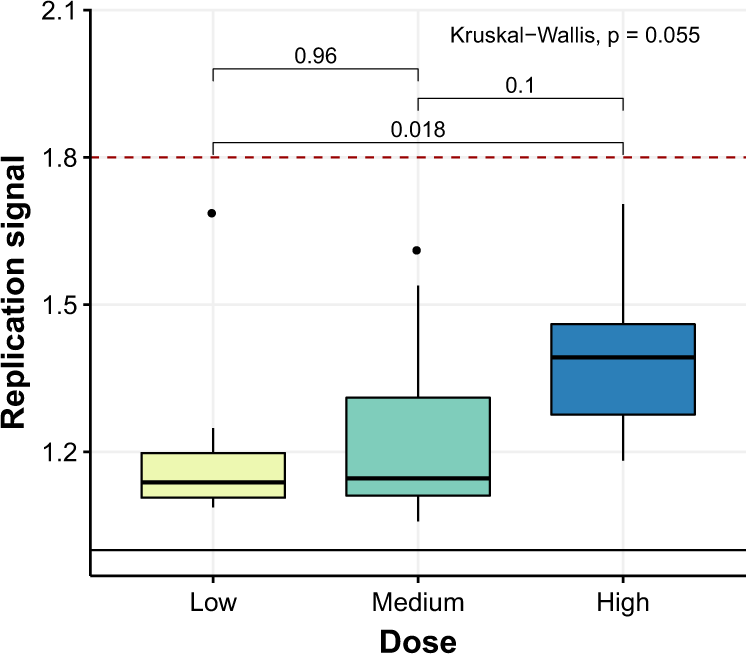

Fig. 7: Replication activity of Anaerobutyricum spp. after 4 weeks of treatment per dose group.

From: Treatment with Anaerobutyricum soehngenii: a pilot study of safety and dose–response effects on glucose metabolism in human subjects with metabolic syndrome

Fig. 7

Data expressed as median and [inter-quartile range]. Within-group comparisons performed with Mann–Whitney U-tests; between-group comparison performed using a Kruskal–Wallis test. The box depicts the inter-quartile range (IQR), with the center line showing the median. The upper whisker extends the largest value no further than 1.5*IQR from inter-quartile range. The lower whisker extends to the smallest value at most 1.5*IQR below inter-quartile range.
