Fig. 2: Transcriptional dynamics of the ingested L. casei Zhang in the human gut.
From: Metagenomic and metatranscriptomic profiling of Lactobacillus casei Zhang in the human gut

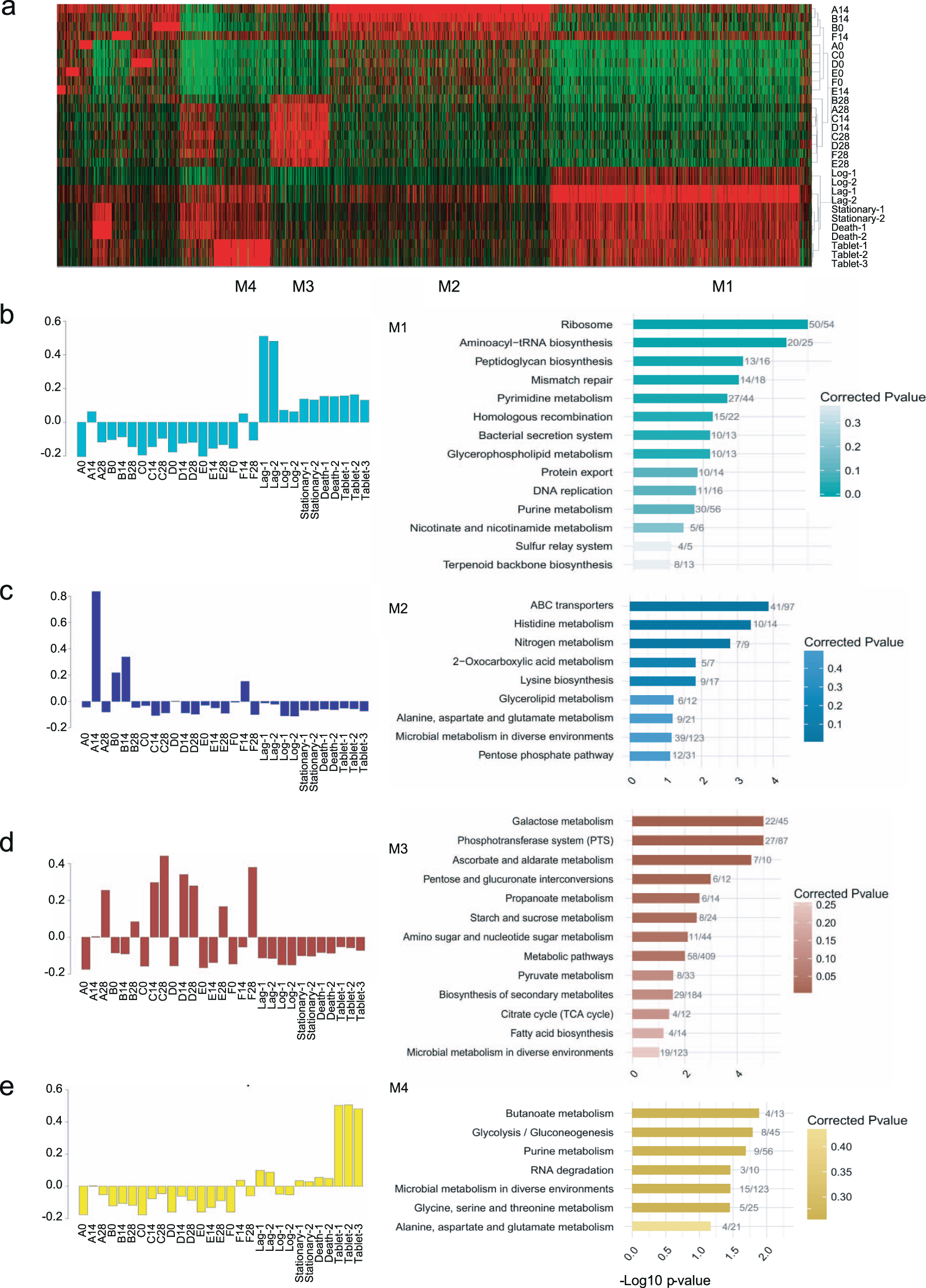

a Heatmap representation of differentially expressed genes mapped onto the L. casei Zhang genome, ranked by the co-expression modules. b–e Bar plots of eigengene value and KEGG pathway enrichment of corresponding genes in module 1 (b), module 2 (c), module 3 (d), and module 4 (e).
