Fig. 7: RDA Plot of Key MAGs.

From: Responses of drinking water bulk and biofilm microbiota to elevated water age in bench-scale simulated distribution systems

Fig. 7: RDA Plot of Key MAGs.

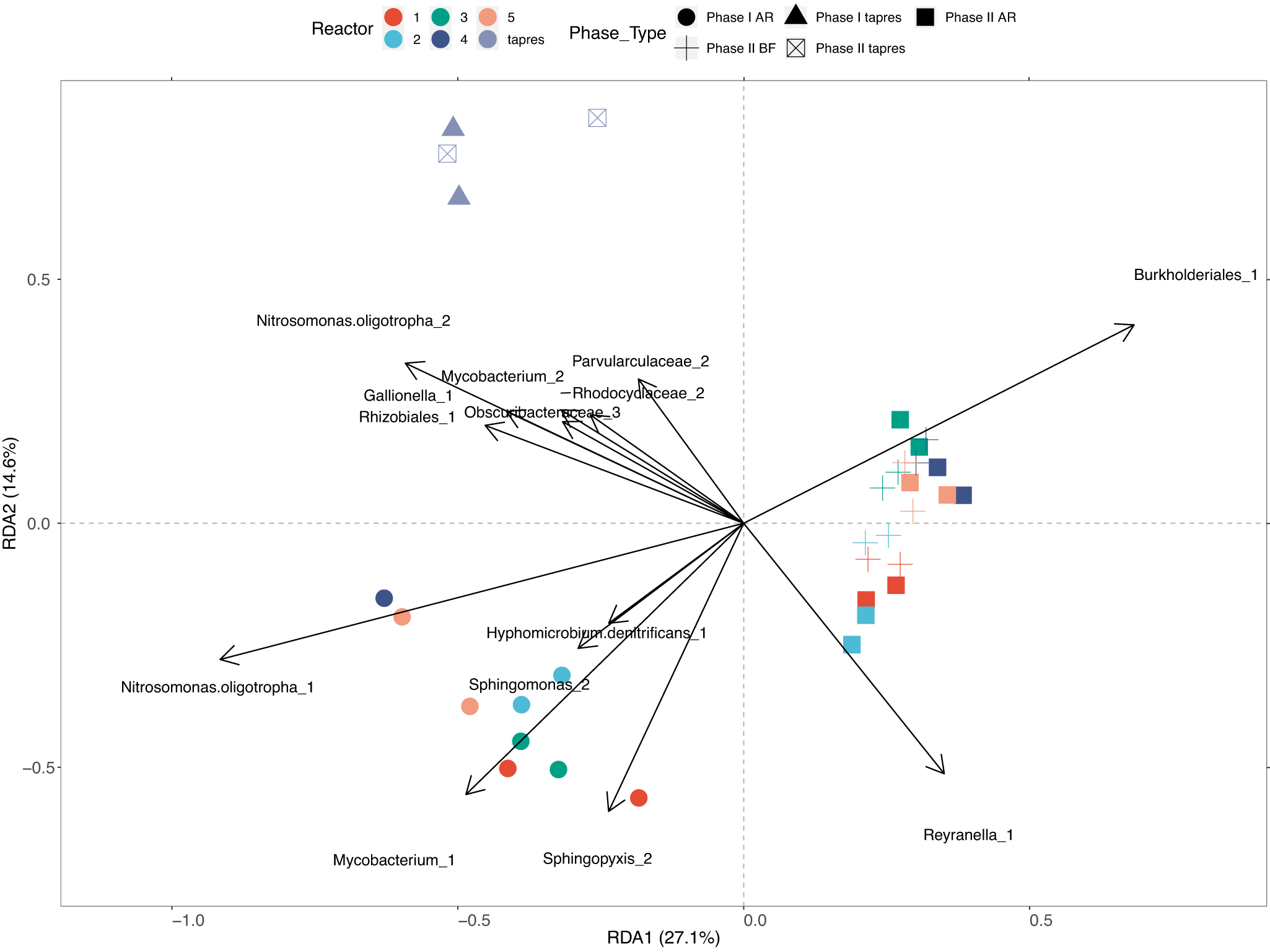

Ordination based on redundancy analysis (RDA) of all sequenced samples based on MAG relative abundance. Colors represent the sample source (reactor number or tap reservoir), and shapes represent sample type (AR: reactor bulk, BF: reactor biofilm, tapres: tap reservoir) and phase (1: Phase I, 2: Phase II). Sample AR4_162 is not included due to suspected cross-contamination (see Section “Sequencing Negative Controls and Cross-Contamination”). For readability, arrows and labels for MAGs significant to the RDA were only included if r > 0.63.
