Fig. 1: Temporal variation of viral communities and their ecological drivers.

From: Temporal dynamics, microdiversity, and ecological functions of viral communities during cyanobacterial blooms in Lake Taihu

Fig. 1

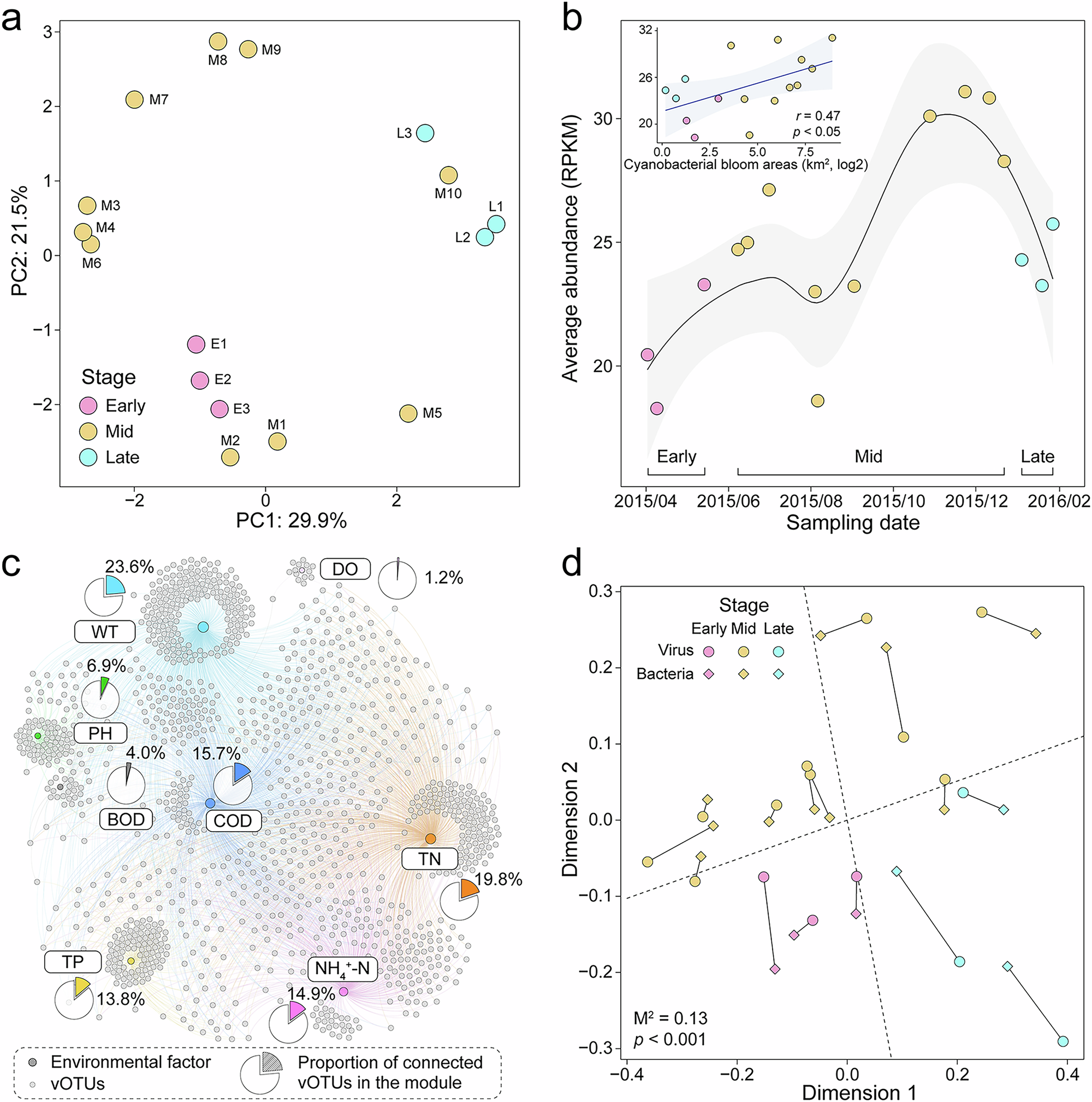

a Principal co-ordinates analysis (PCoA) of viral β-diversity based on Bray-Curtis dissimilarity of viral communities. b Variation in average abundance (RPKM) of viral communities with sampling time. The fitted line is visualized using the locally estimated scatterplot smoothing (LOESS) nonparametric regression model. The subplot shows the correlation between viral abundance and cyanobacterial bloom areas (km2, log2). c Co-occurrence network of environmental factors and vOTUs. The size of each dot which represents environmental factor is proportional to the network degree. Pie charts demonstrate the proportion of the connected vOTUs in a single network module for each environmental factor. d Procrustes analysis based on Bray-Curtis distances of viral and bacterial communities.
