Fig. 8: Bubble plots show the different expression levels of significantly differentially expressed carbohydrate-associated genes by different MAGs in IN4 compared to the CG group. | npj Biofilms and Microbiomes

Fig. 8: Bubble plots show the different expression levels of significantly differentially expressed carbohydrate-associated genes by different MAGs in IN4 compared to the CG group.

From: Integrative multi-omics analysis of dietary fibre-induced modulations in the composition and function of chicken caecal microbiota

Fig. 8: Bubble plots show the different expression levels of significantly differentially expressed carbohydrate-associated genes by different MAGs in IN4 compared to the CG group.

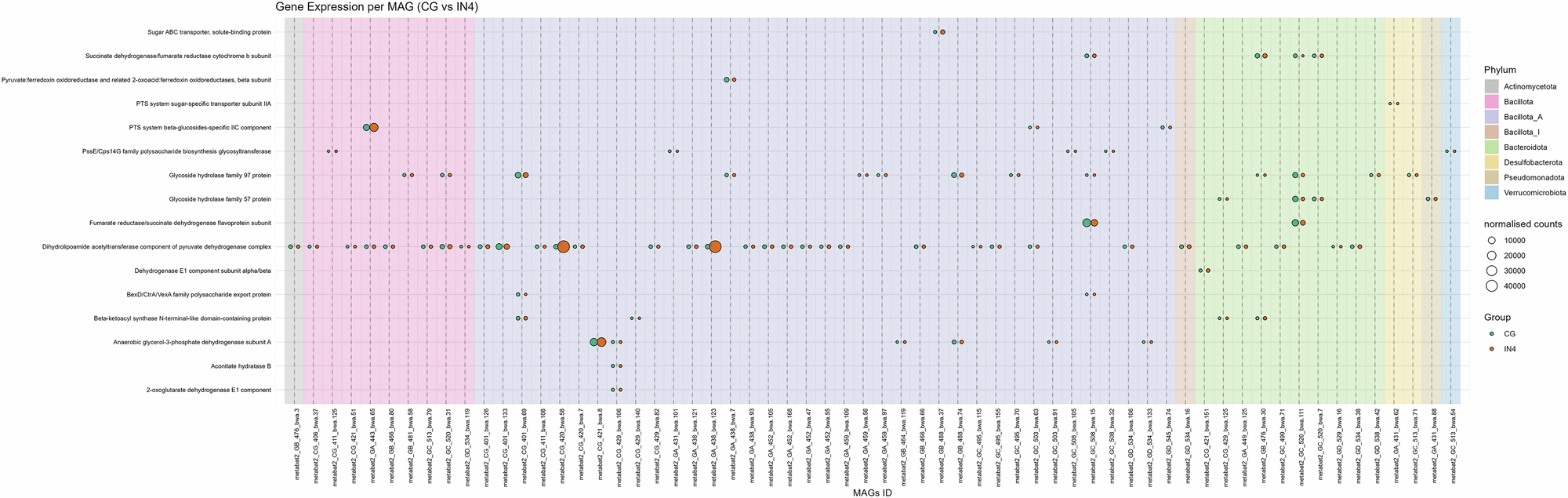

Bubble size represents normalised counts per gene per MAG across different dietary groups. Background colour indicates the phylum to which each MAG belongs. CG Control group, IN4 4% inulin.
