Fig. 3: Comparison of jagged ends between plasma and urinary DNA.

From: High-resolution analysis for urinary DNA jagged ends

Fig. 3: Comparison of jagged ends between plasma and urinary DNA.

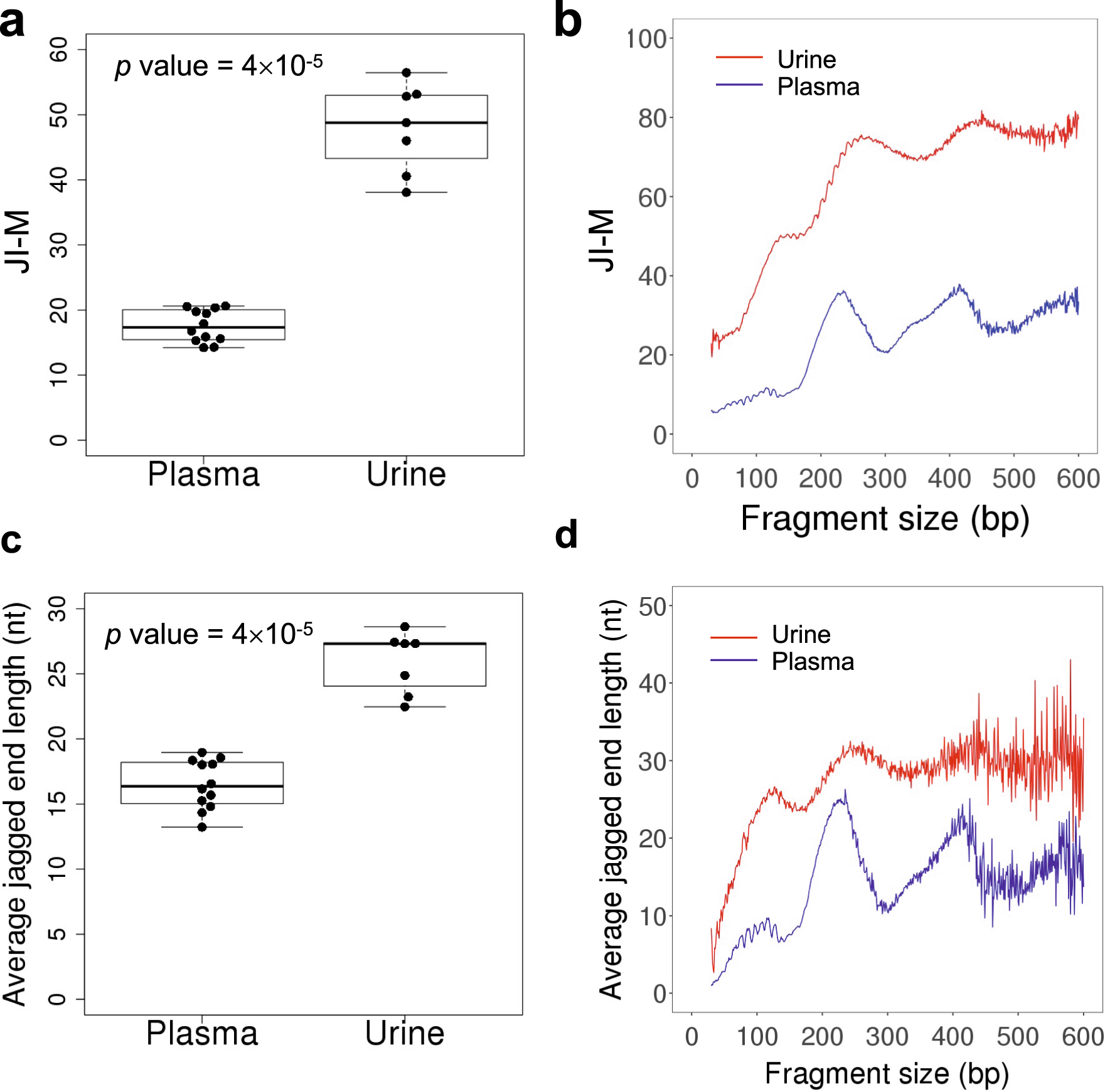

a, b CH methylation level in read2 (JI-M) across the different fragment sizes. c, d Average jagged end length across the different fragment sizes. The central line indicates the median value. The bottom and top of the boxes are the 25th and 75th percentiles (interquartile range). The whiskers encompass 1.5 times the interquartile range.
