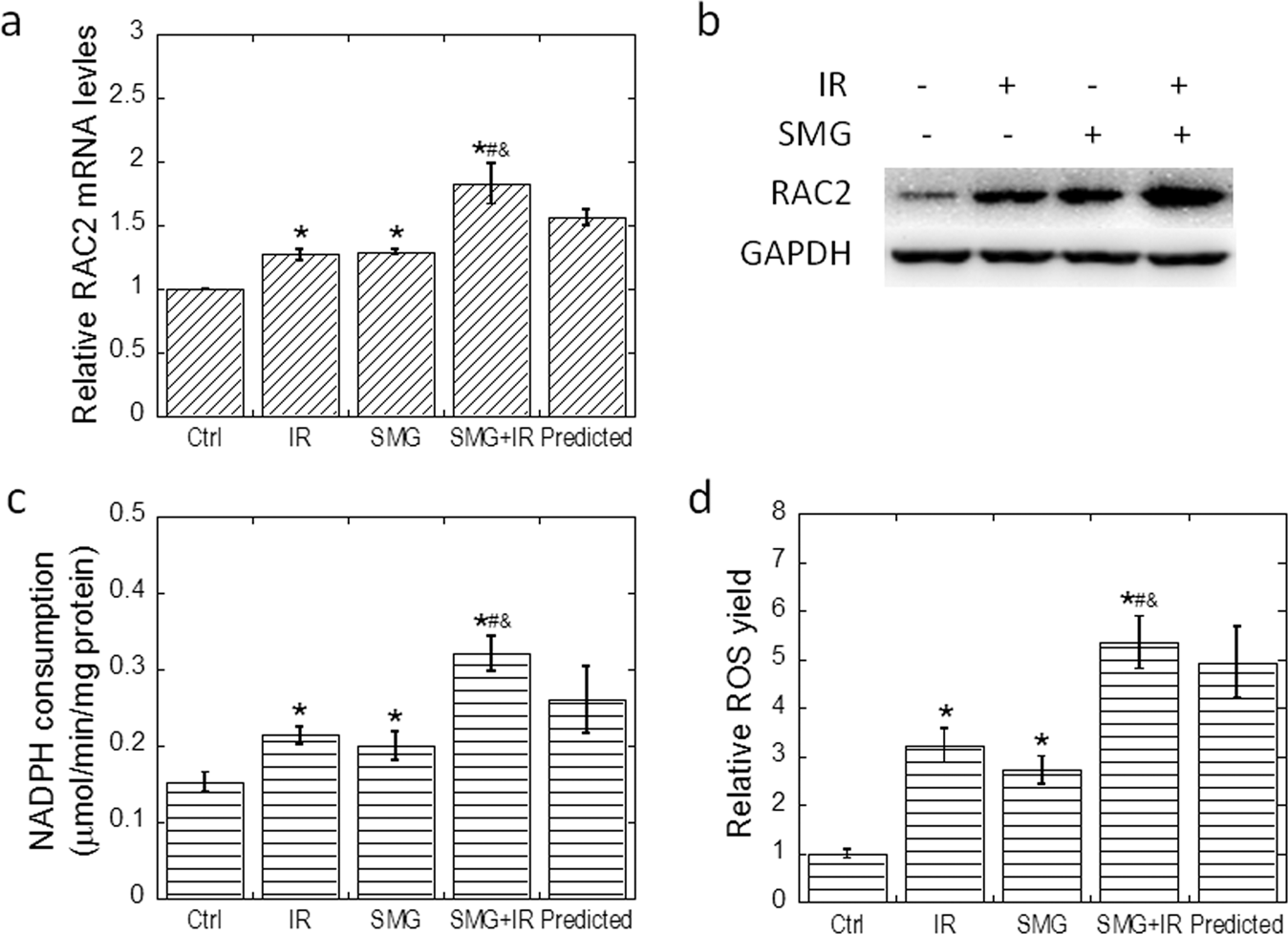

Fig. 5: Simulated microgravity and radiation increased RAC2 expression, NADPH oxidase activity, and ROS yield additively. | npj Microgravity

Fig. 5: Simulated microgravity and radiation increased RAC2 expression, NADPH oxidase activity, and ROS yield additively.

From: Additive effects of simulated microgravity and ionizing radiation in cell death, induction of ROS and expression of RAC2 in human bronchial epithelial cells

Fig. 5: Simulated microgravity and radiation increased RAC2 expression, NADPH oxidase activity, and ROS yield additively.

Beas-2B cells were treated by simulated microgravity for 48 h first and then exposed to 2 Gy X-ray irradiation. Samples for qRT-PCR, western blotting, NADPH consumption assay, as well as ROS production assay were all collected at 2 h post irradiation. a Transcriptional level of RAC2 was determined in Beas-2B cells exposed to simulated microgravity and/or 2 Gy X-rays. b Protein level of RAC2 as determined by western blotting. c NADPH consumption in Beas-2B cells exposed to simulated microgravity and/or 2 Gy X-rays. d ROS yields in the treated Beas-2B cells. All experiments were done in triplicate and error bars indicate SEM. Ctrl, control group; IR, irradiation group; SMG, simulated microgravity group; SMG + IR, simulated microgravity combined with irradiation group. *Compared with control group. #Compared with IR group. &Compared with SMG group. */#/&: p < 0.05.
