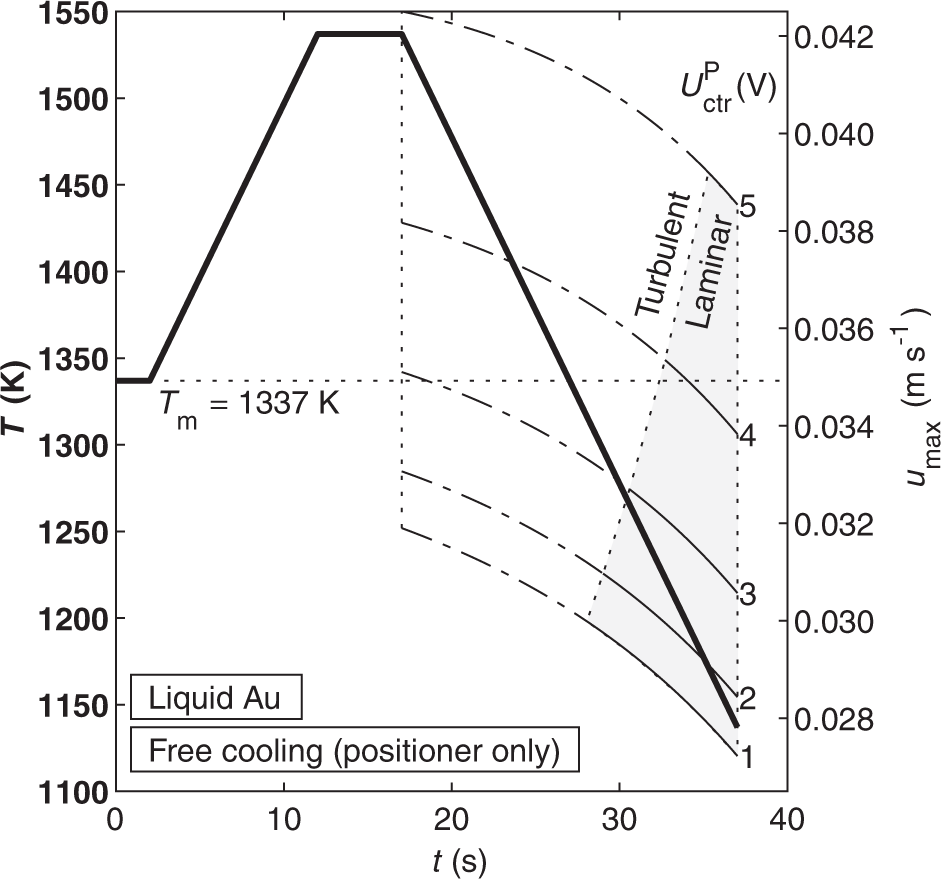

Fig. 4: An idealized cycle in which a gold sample is melted, heated to T_m + 200, and then cooled with the heater off.

Maximum flow velocity is plotted as a function of temperature and positioner control voltage. The shaded area represents the valid region where Re < 600.
