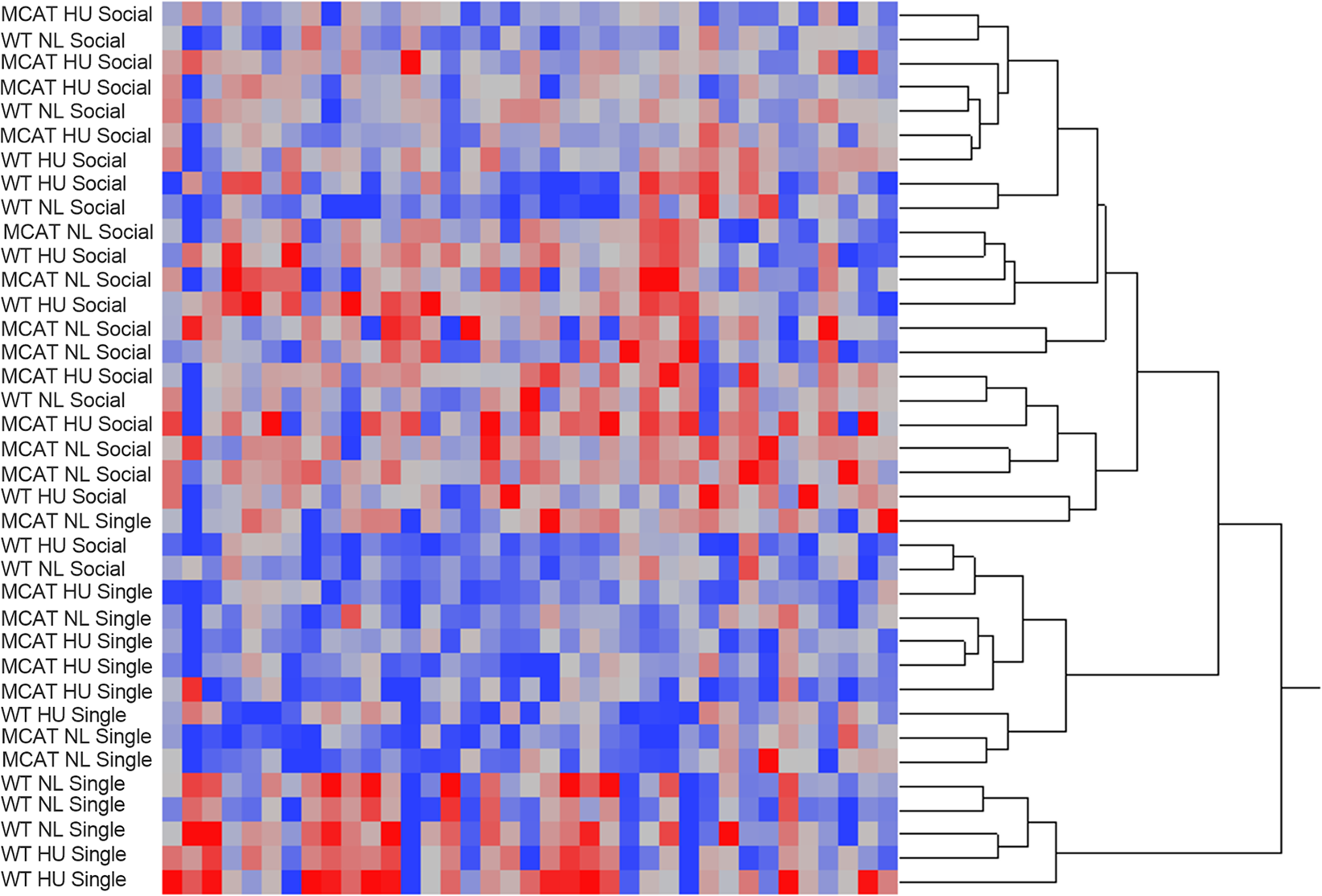

Fig. 1: Heatmap showing expression of a panel of 44 cytokines in hippocampus and hierarchical clustering analysis of eight experimental groups.

From: Overexpression of catalase in mitochondria mitigates changes in hippocampal cytokine expression following simulated microgravity and isolation

Fig. 1

Except for a few samples, clustering generally occurred by housing environment (single or social). Deeper shades of red: higher cytokine levels, deeper shades of blue: lower cytokine levels, off-white: no change in expression.
