Fig. 7: Measurement of muscle strength for wild-type C. elegans during multigenerational experiment. | npj Microgravity

Fig. 7: Measurement of muscle strength for wild-type C. elegans during multigenerational experiment.

From: Microfluidics-integrated spaceflight hardware for measuring muscle strength of Caenorhabditis elegans on the International Space Station

Fig. 7

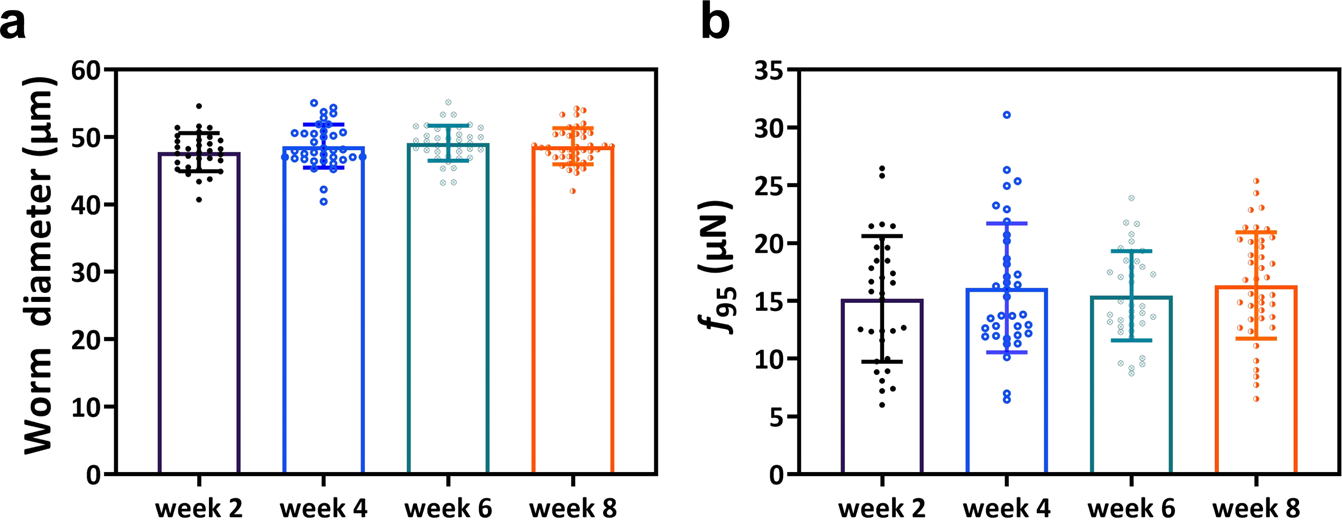

a Worm diameter over multiple generations. b Muscle strength over multiple generations. n = 32 for week 2, n = 36 for week 4, n = 38 for week 6, and n = 41 for week 8 (Supplementary Table 5). Error bars represent standard deviation. All the data pass the normality test. There is no significant difference between force values using one-way ANOVA with P = 0.8.
