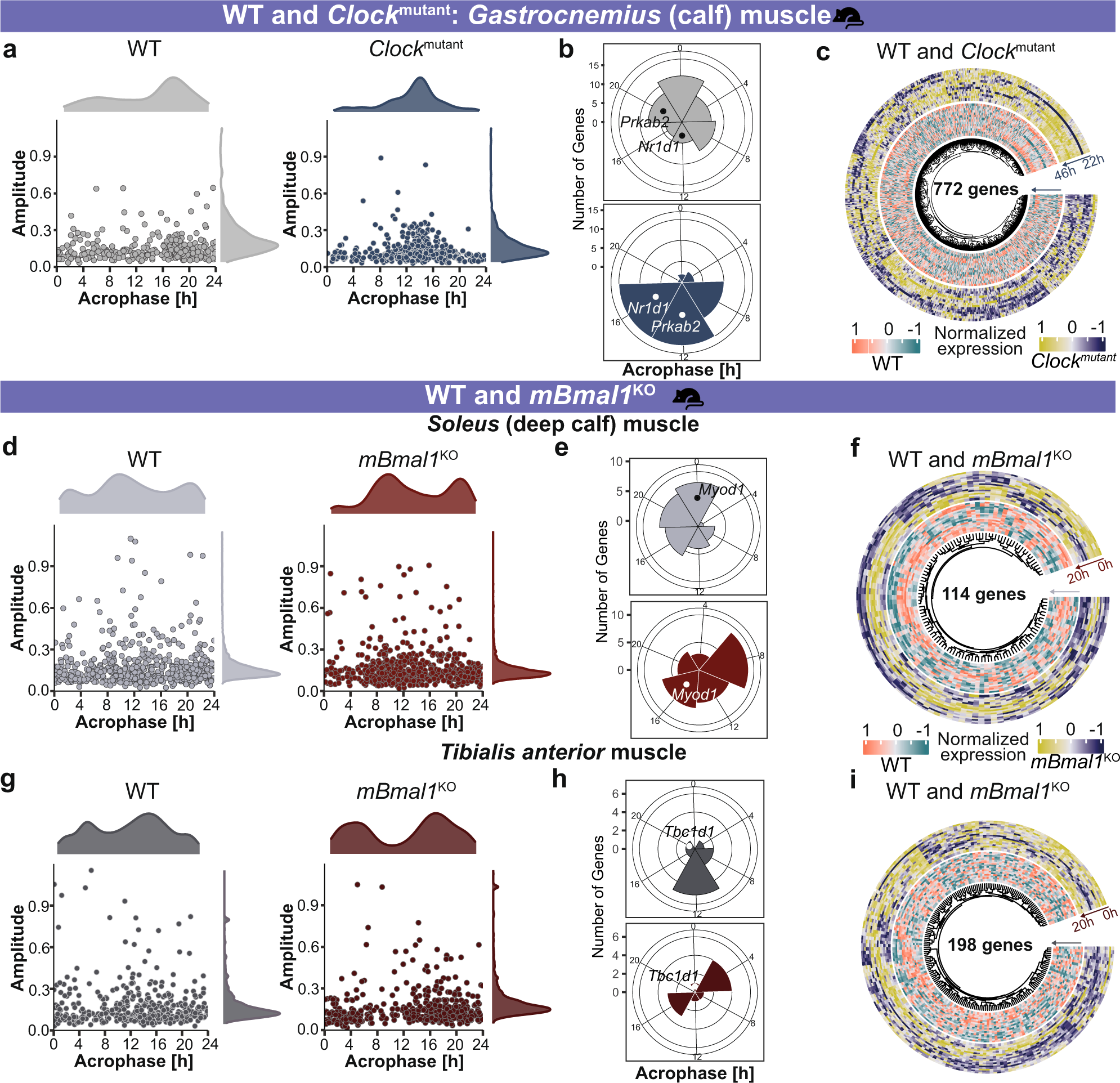

Fig. 3: Clock alterations resulted in changes among circadian properties and differential expression in mouse skeletal muscle.

a Scatter plot depicts the overall distribution of ~24 h genes of interest in WT and Clock^mutant mice. b Acrophase bin plot depicts the distribution of phases of differentially rhythmic genes of interest between WT and Clock^mutant. c Circular heatmap plot represents the expression profile of 772 differentially expressed genes of interest between WT and Clock^mutant. d, g Scatter plot depicts the overall distribution of ~24 h genes of interest in Soleus and Tibialis anterior muscle of WT and mBmal1^KO mice. e, h Acrophase bin plot depicts the distribution of phases of differentially rhythmic genes of interest between WT and mBmal1^KO. f, i Circular heatmap plot represents the expression profile of 114 (in Soleus) and 198 (in Tibialis anterior) differentially expressed genes of interest between WT and mBmal1^KO.
