Fig. 9: Differential expression of transcription factors and GO term enrichment analyses of the microgravity responsive genes targeted by the potential GCC- and CACGTG- elements. | npj Microgravity

Fig. 9: Differential expression of transcription factors and GO term enrichment analyses of the microgravity responsive genes targeted by the potential GCC- and CACGTG- elements.

From: Potential regulatory modules to integrate microgravity signals into flowering pathways in Arabidopsis thaliana grown in space

Fig. 9

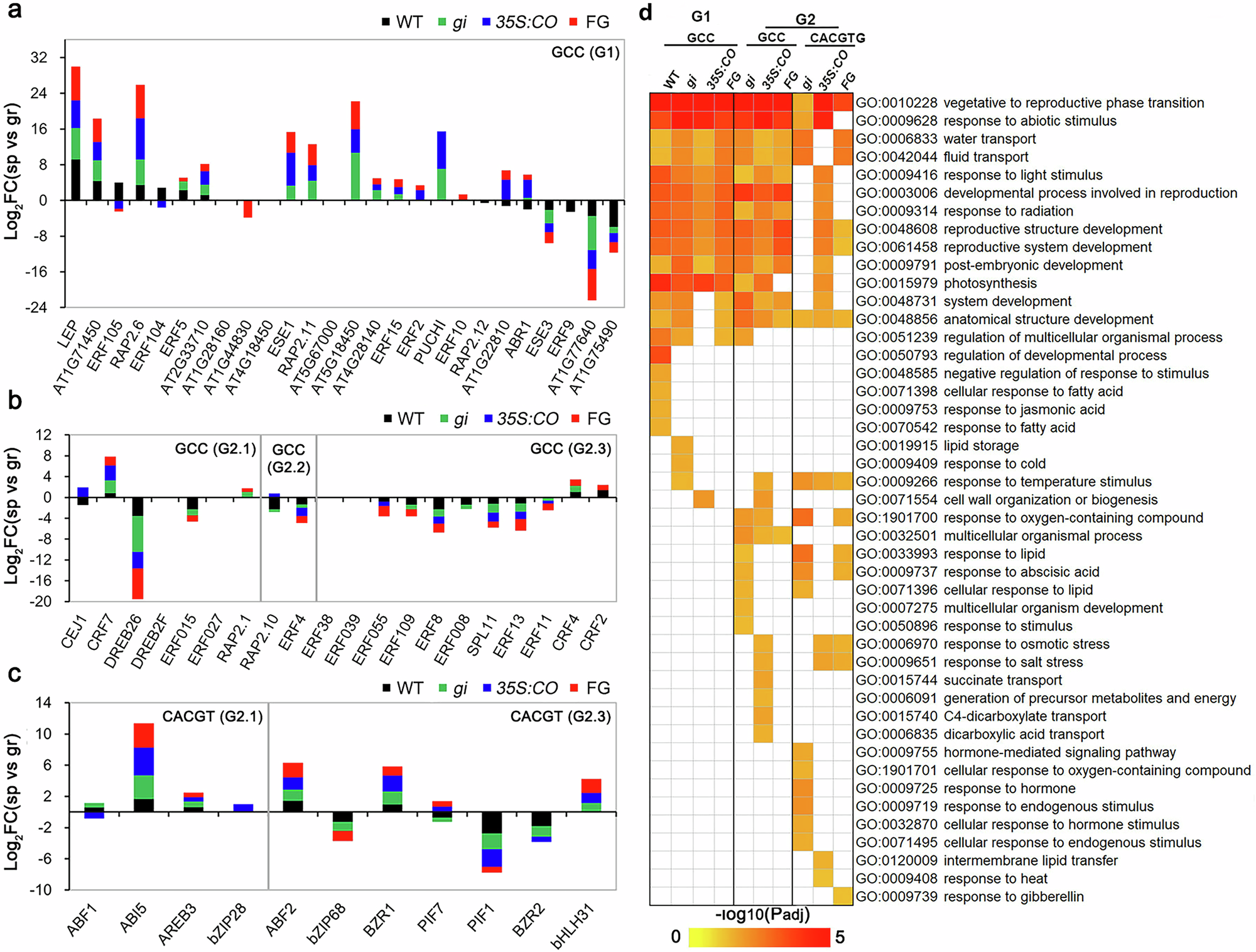

a–c Standard stacked bar charts show log2 fold changes in the relative transcript abundances of transcription factors (TFs) in WT, gi, 35S:CO and FG plants in space (sp) in comparison with the ground controls (gr). The 57 TF genes associated with potentially highly enriched (enrichment score>150 and FDR < 0.001) cis-elements (GCC and CACGTG) in WT, gi, 35S:CO and FG, respectively, are listed in Table 1. G1, Group 1; G2,1, group 2.1; G2.2, group2.2; G2.3, group 2.3. d GO (Gene Ontology) terms overrepresented in the target genes of the GCC - and the CACGTG-motif-bound TFs in (a–c). The significant GO terms (PANTHER statistical overrepresentation test, GO-Slim biological process, FDR P-value < 0.01) are shown as colored bars.
