Fig. 4
From: Room-temperature processing of silver submicron fiber mesh for flexible electronics

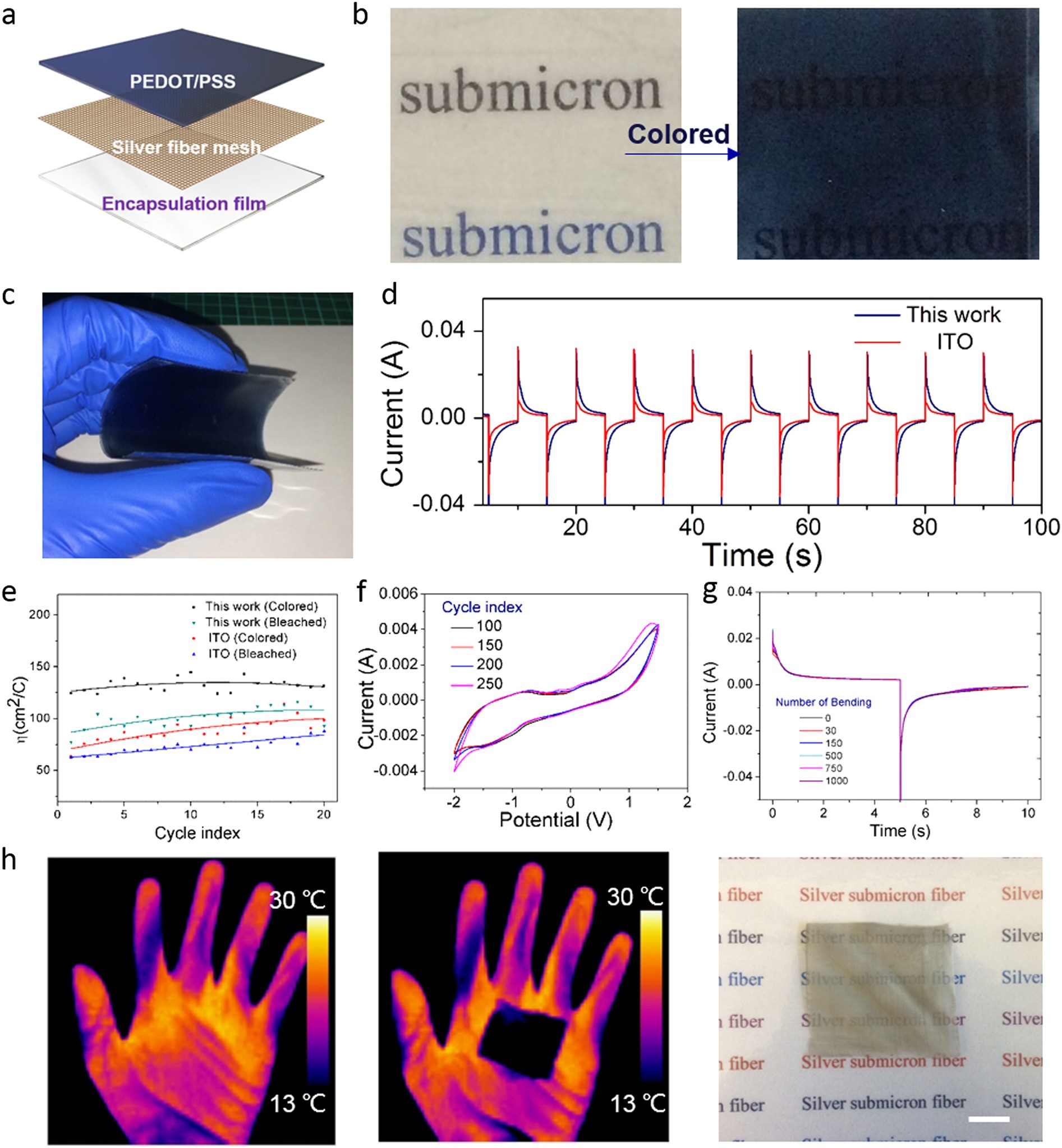

Pictorial depiction of various applications of silver fiber mesh. a Structural chart depicting the preparation process of electrochromic smart window. b Images of before and after being colored. c Flexibility for the films after being colored. d I–t curve corresponding to the sample obtained in this work and ITO. e The electrochromic efficiency of colored and bleached samples obtained from this work shows better than ITO. f Cyclic voltammetric curve of different cycles (100, 150, 200, 250). g Stability test of the electrochromic smart window after being subjected to bending for up to 1000 times. h Pictorial representation of infrared stealth thin film based on silver fiber mesh (scale bar: 1 cm)
