Fig. 6
From: Multiscale nanowire-microfluidic hybrid strain sensors with high sensitivity and stretchability

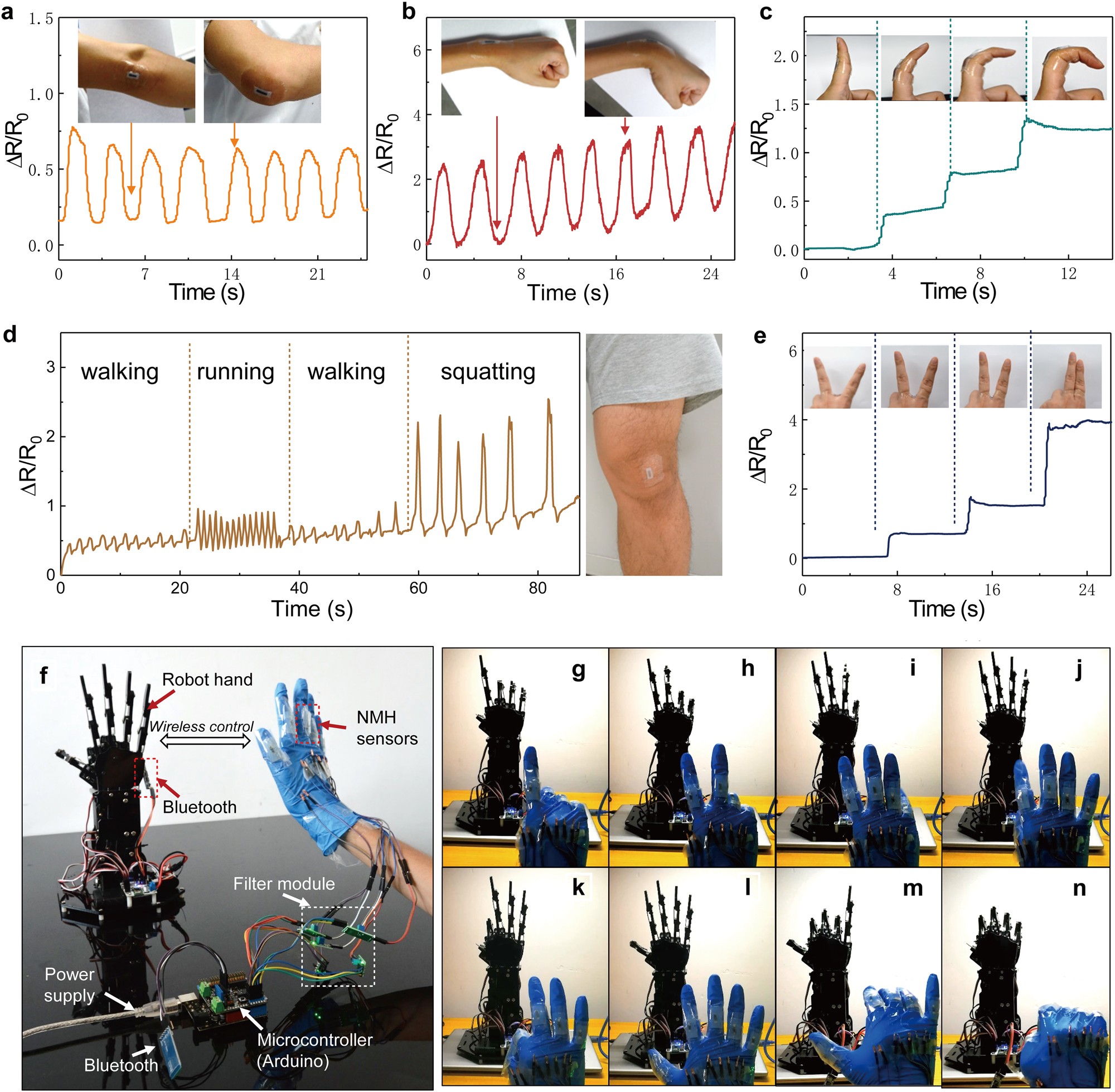

Using the NMH strain sensor for human motion detection. a–e The relative change in the resistance of our strain sensor mounted on different locations of the human body: a elbow and b wrist bending. c Bending process of a finger. d Walking, running, and squatting of a knee joint. e Closing process of the fingers. f An interactive electronic system using a multichannel data-glove with five NMH sensors to control a robotic hand by wireless communication. g–n Control of different numbers of fingers of the robotic hand by a human hand wearing the data-glove with NMH sensors
