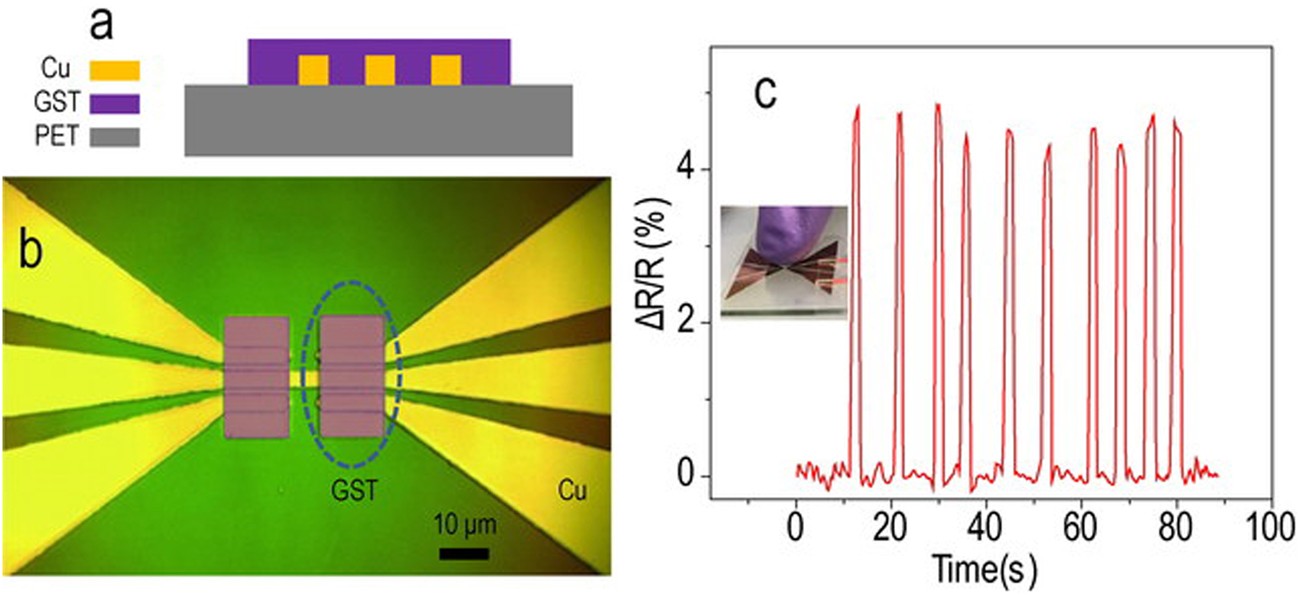

Fig. 6
From: Highly sensitive integrated flexible tactile sensors with piezoresistive Ge 2 Sb2Te5 thin films
a Cross-sectional schematic of the GST sensor. b Optical microscopy image of the flexible strain sensor with 1 μm GST gap (scale bar, 10 μm). c Relative resistance change with touching behavior
