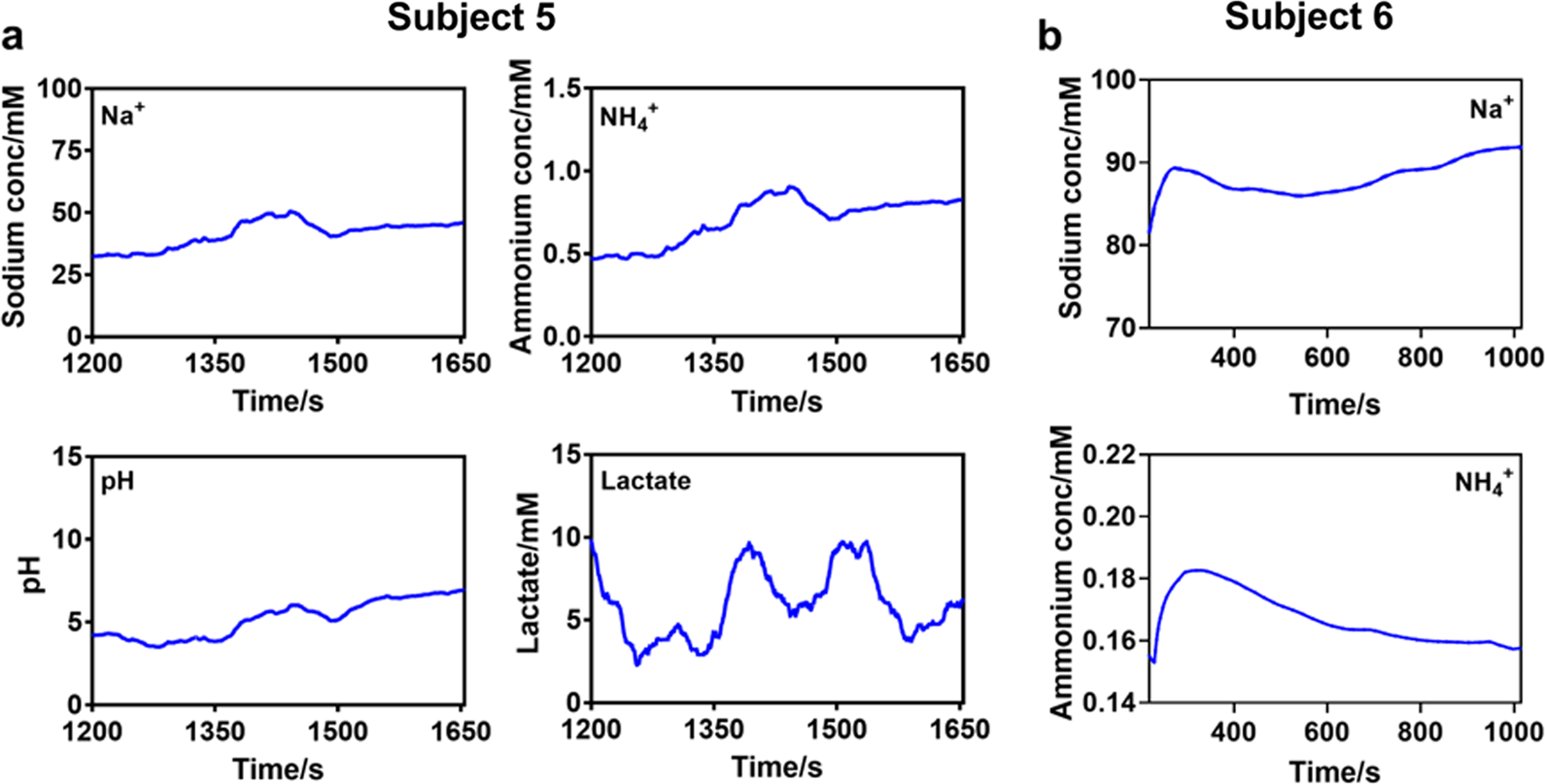

Fig. 8: Simultaneous and real-time multiplexed sweat patch sensor data using wearable readout electronics.
From: Thread-based multiplexed sensor patch for real-time sweat monitoring
a Sensor data of ammonium, sodium, pH, and lactate of Subject 5 wearing the sweat sensor patch on the forehead during the stationary cycling. b Sensor data of Subject 6 wearing a waist belt integrated with sensor patch and the electronic during treadmill run.
