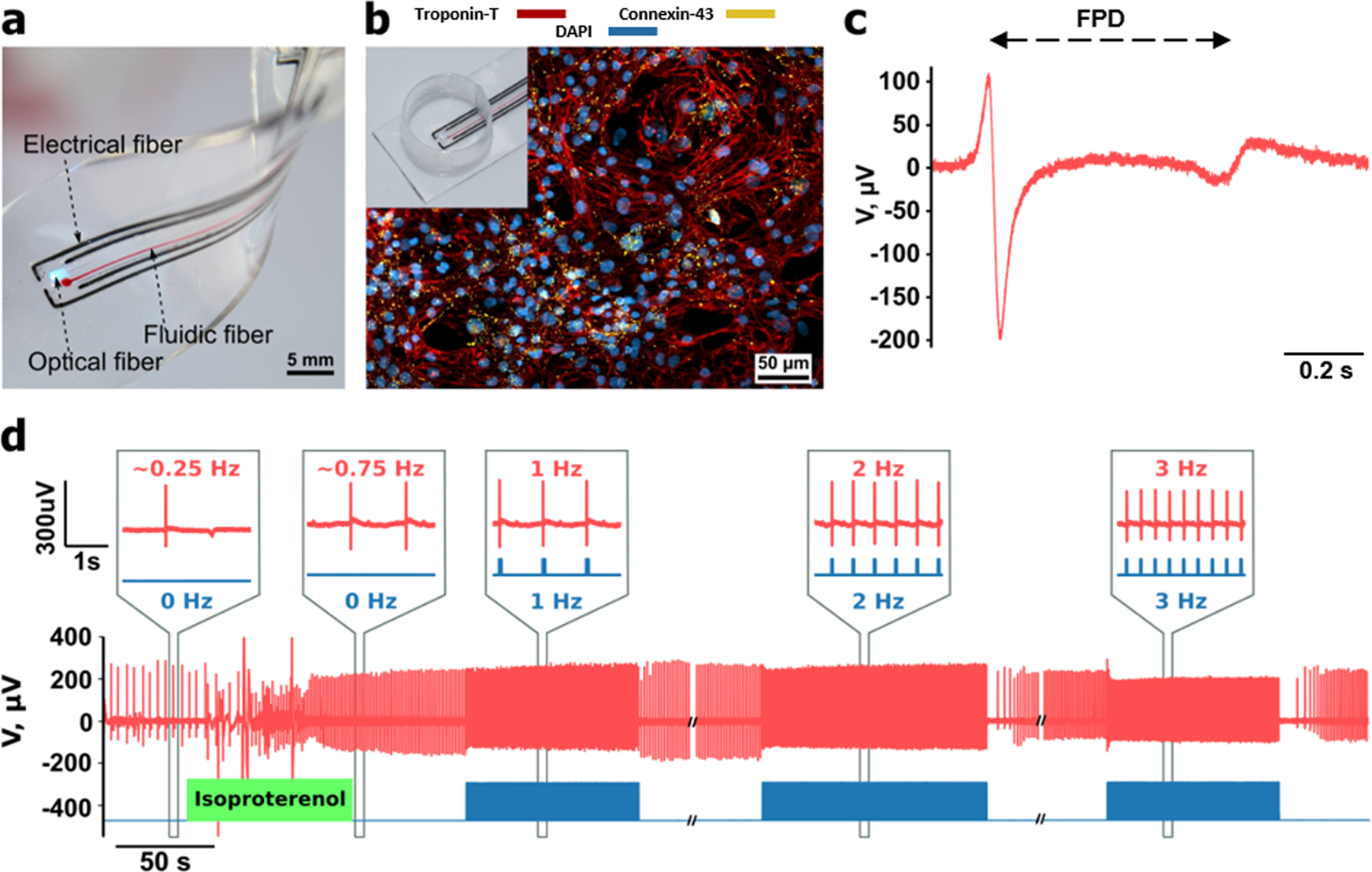

Fig. 4: Printed membrane for cardiomyocyte interfacing.

a Integrated array of functional fibres where active sites form four electrodes, an optrode and a chemotrode. b hiPSC-derived cardiomyocytes cultured on the array express key cardiomyocyte markers troponin-T (red) and connexin-43 (yellow). Nuclei are labelled with DAPI stain (blue). Scale bar 50 μm. Inset: membrane equipped with printed culture chamber. c Recording of spontaneous electrical activity (field potential) from hiPSC-CM. The waveform shows clearly visible depolarization due to Na⁺ influx (first oscillation) and repolarization due to K⁺ efflux (smaller second oscillation). The field potential duration (FPD) is 580 ms. The beat rate in this recording was approximately 0.15 Hz. d Bursts of optical pacing (blue) modulate the frequency of field potentials (red) generated in the cardiomyocyte monolayer. Insets show individual field potentials and their temporal relation to optical pulses. Infusion of isoproterenol increases baseline spontaneous activity. Additional pacing with optical bursts allows for further increase of field potential frequency (representative recording).
