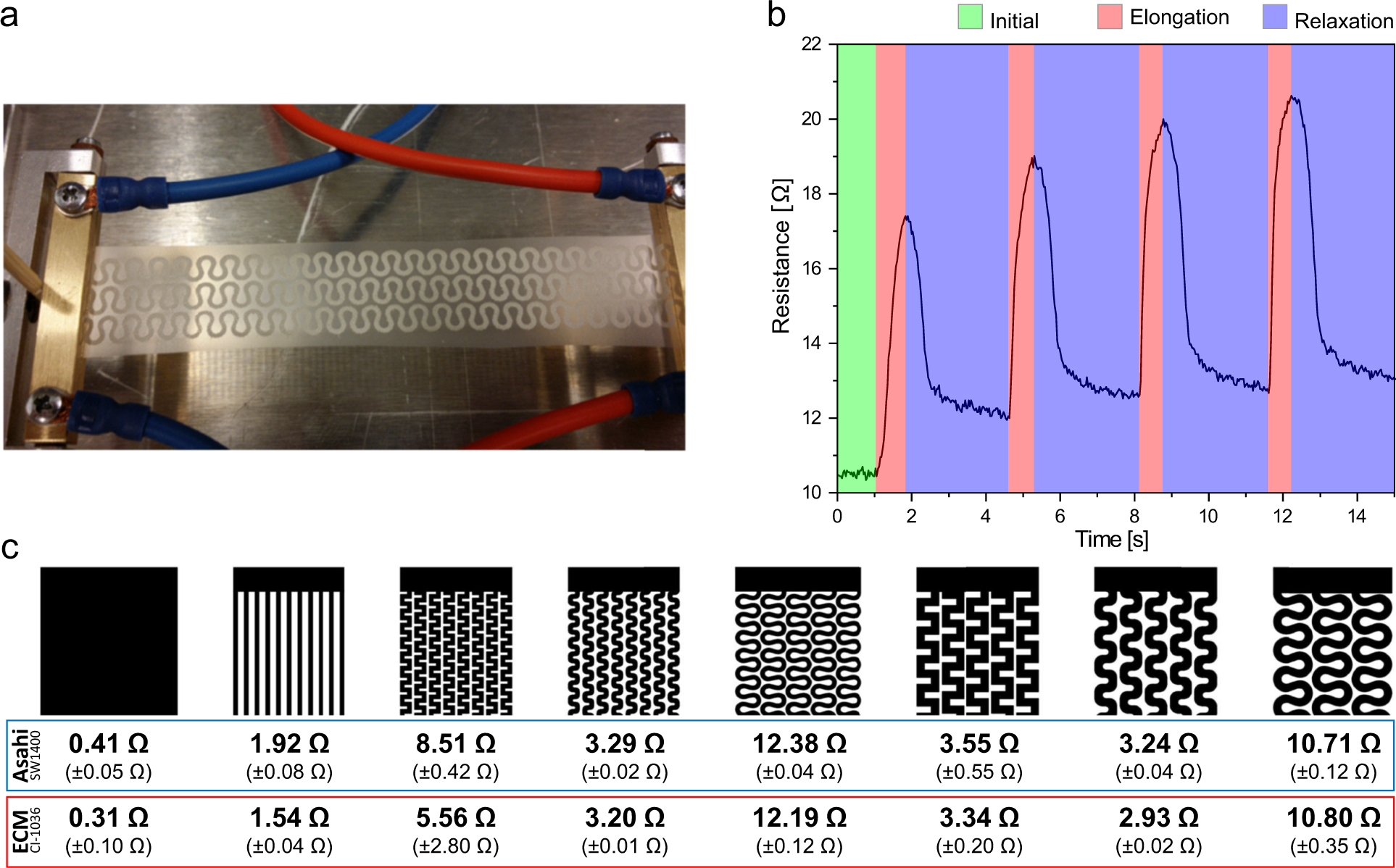

Fig. 2: Resistance measurements.
From: Reliability of R2R-printed, flexible electrodes for e-clothing applications
a Four-probe resistance vs. elongation measurement system with 30 Hz sampling rate. b An exemplary plot of the electrode resistance variation during the elongation cycling. c The initial resistance of the various shaped electrodes for Asahi SW1400 and ECM CI-1036 screen-printing pastes.
