Fig. 3: The resistance of various shaped electrodes for two best-performing pastes.

From: Reliability of R2R-printed, flexible electrodes for e-clothing applications

Fig. 3

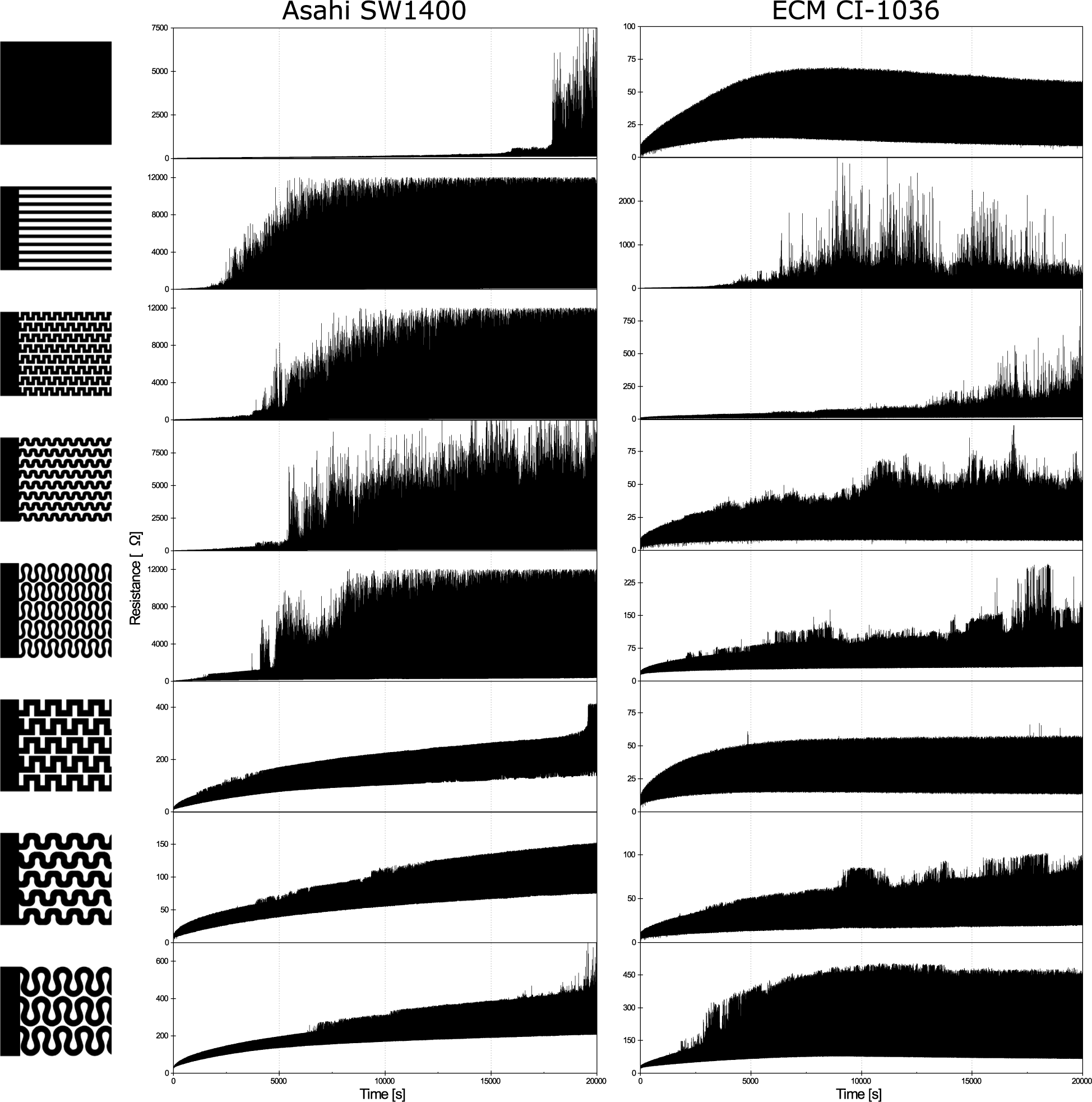

The plots depict the change of resistance during the elongation and relaxation cycle. The full cycle consisted of 10,000, 10% elongation cycles, at speed 0.5 Hz. The resistance axis scale varies, and it is adapted to each resistance range to illustrate the behavior of the electrodes better. The plots for the remaining pastes (ECM CI-4040 and XCMB-590) are available in the Supplementary Information.
