Fig. 2: Solution supramolecular assembly of PEDOT:PSS solution.

From: Deciphering the superior thermoelectric property of post-treatment-free PEDOT:PSS/IL hybrid by X-ray and neutron scattering characterization

Fig. 2

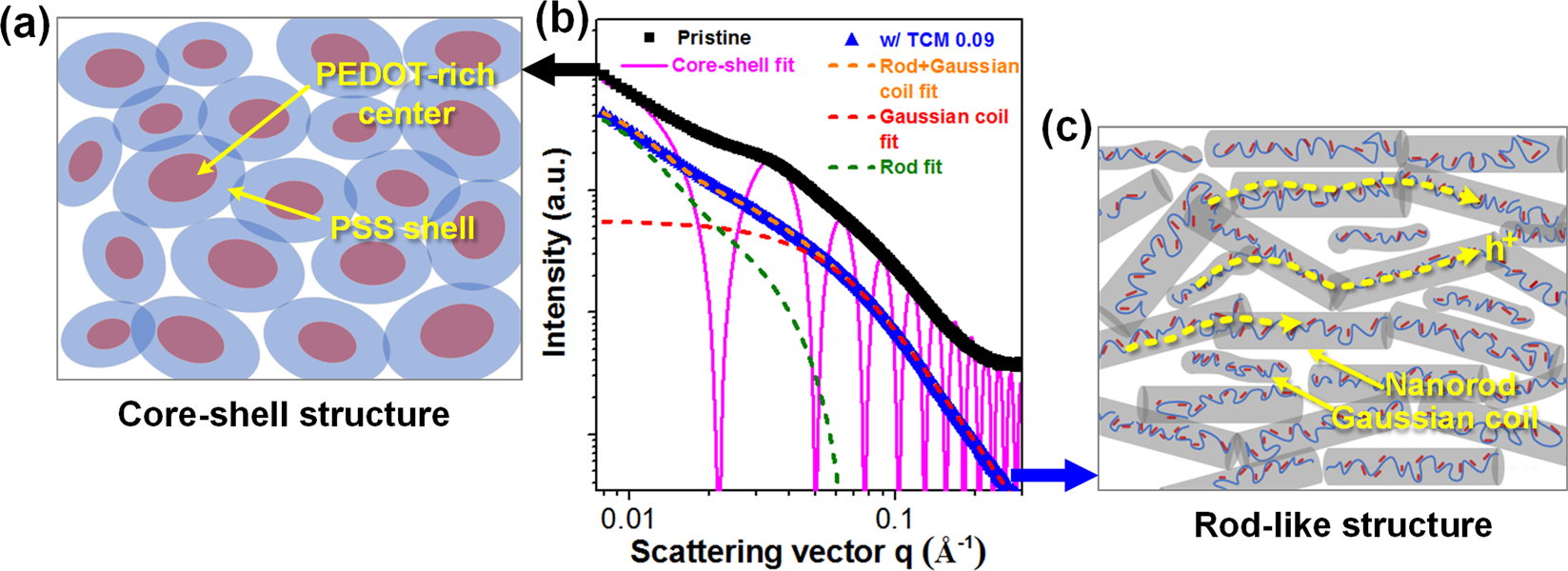

a, c A microphase-segregated core (PEDOT)-shell (PSS) structure (a) and a rod-like microstructure (c) consisting of rigid rods and associated soft Gaussian coils, corresponding to PEDOT and PSS molecules, respectively, were used to fit the SAXS data of PEDOT:PSS hybrid solutions (b). The conductive pathway is schematically illustrated in (c) with dashed arrows.
