Fig. 5: Crystalline structure of PEDOT:PSS hybrid film.

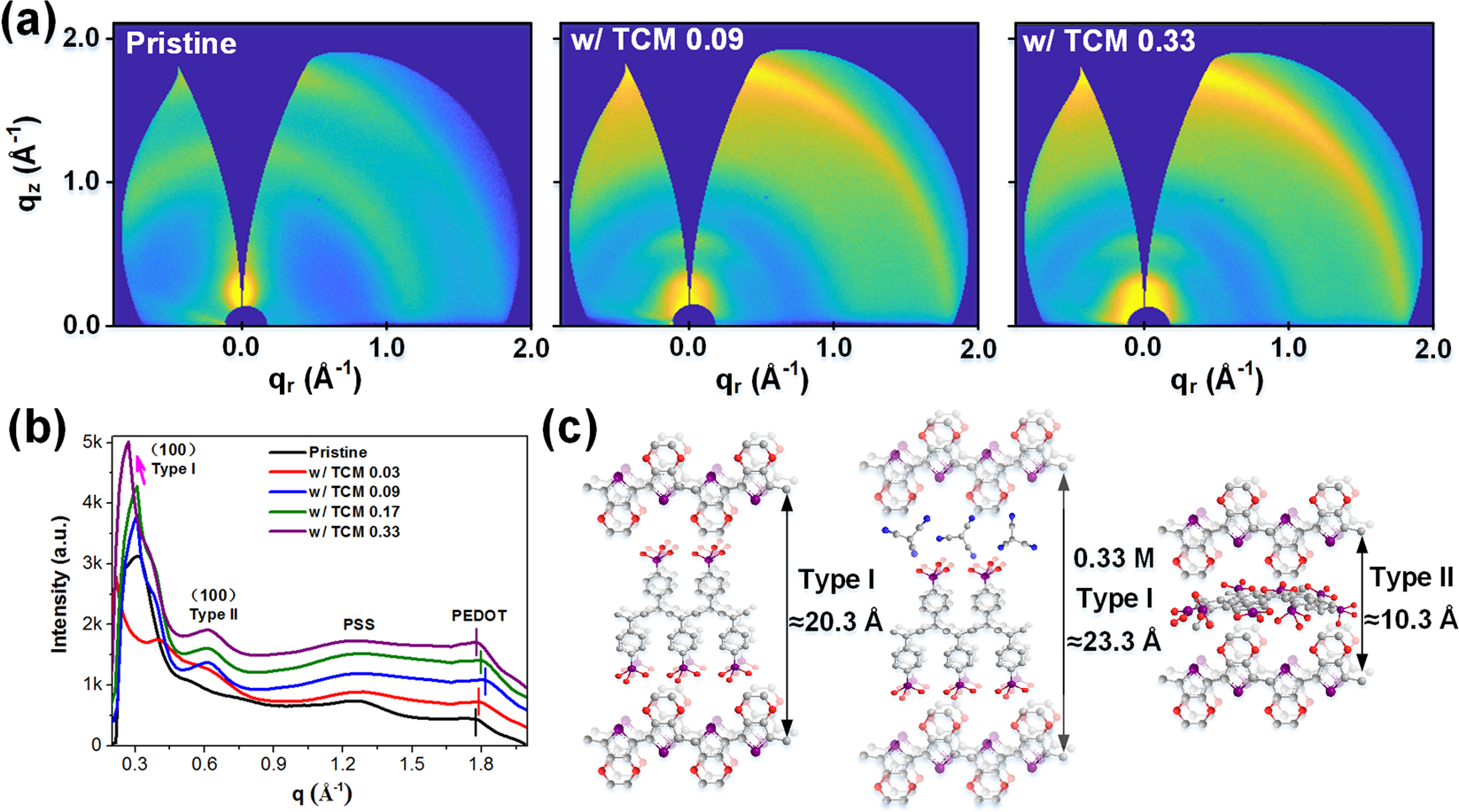

a Typical 2D GIWAXS patterns of PEDOT:PSS/EMIM:TCM hybrid films. b 1D GIWAXS scattering profiles integrated along cake cuts of the 2D patterns. c Schematic diagram of the lamellar stacking structures of PEDOT:PSS, extracted from the GIWAXS data analysis.
