Fig. 2: Physical characterization of the composite material.

From: On-skin ultrathin and stretchable multifunctional sensor for smart healthcare wearables

Fig. 2

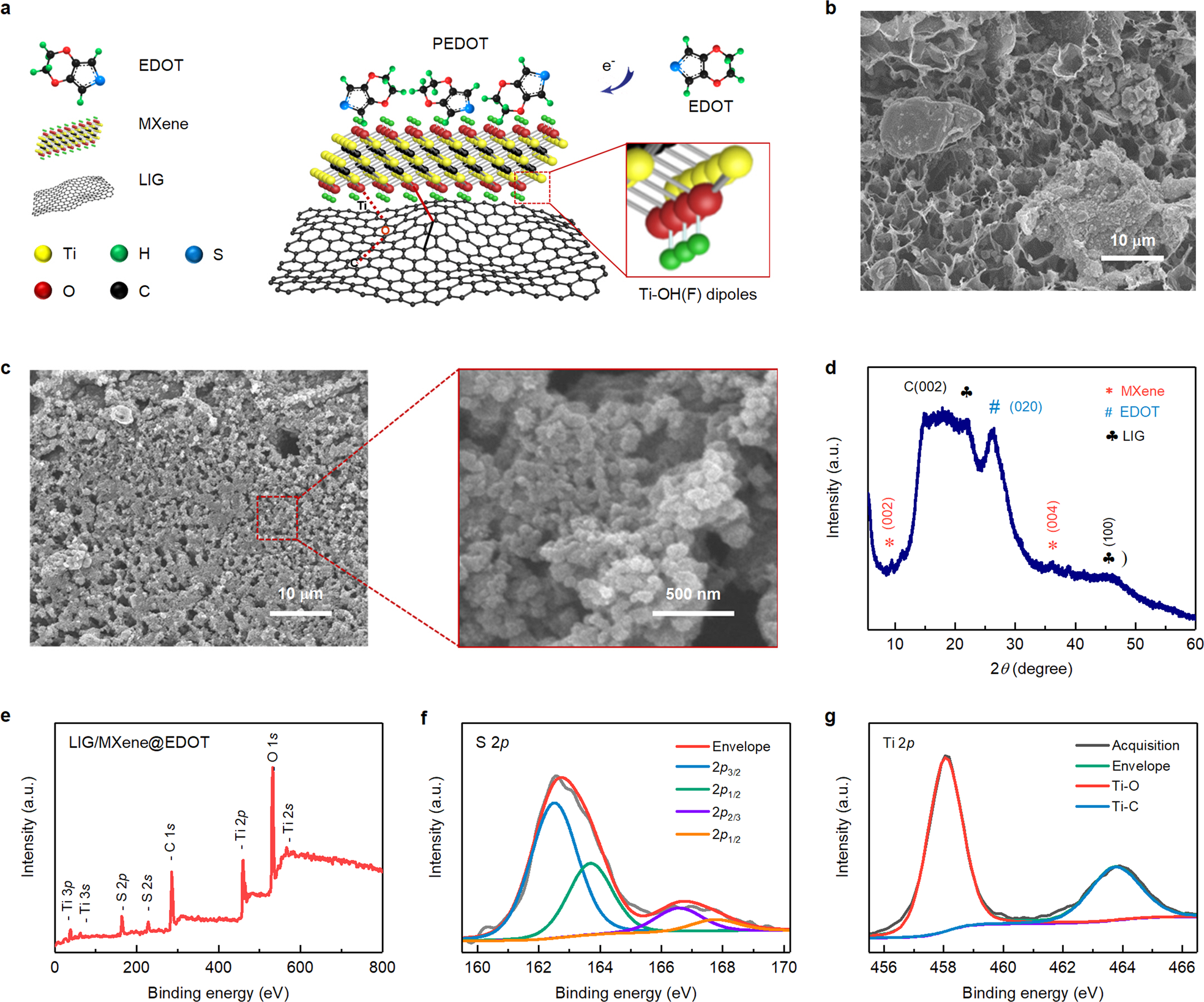

(a) 3D chemical and physical crosslinking of the LIG, MXene-Ti3C2Tx, and EDOT. (b) FESEM image of drop-casted MXene-Ti3C2Tx@EDOT on LIG. (c) FESEM image of MXene-Ti3C2Tx@EDOT on LIG after electrophoretic deposition (high-resolution FESEM in inset). (d) XRD and (e) XPS survey spectrums of LIG/MXene-Ti3C2Tx@EDOT composite. XPS spectrum of (f) S 2p and (G) Ti 2p region.
