Fig. 3: Flexible strain and chemical sensors based on starch films.

From: Green flexible electronics based on starch

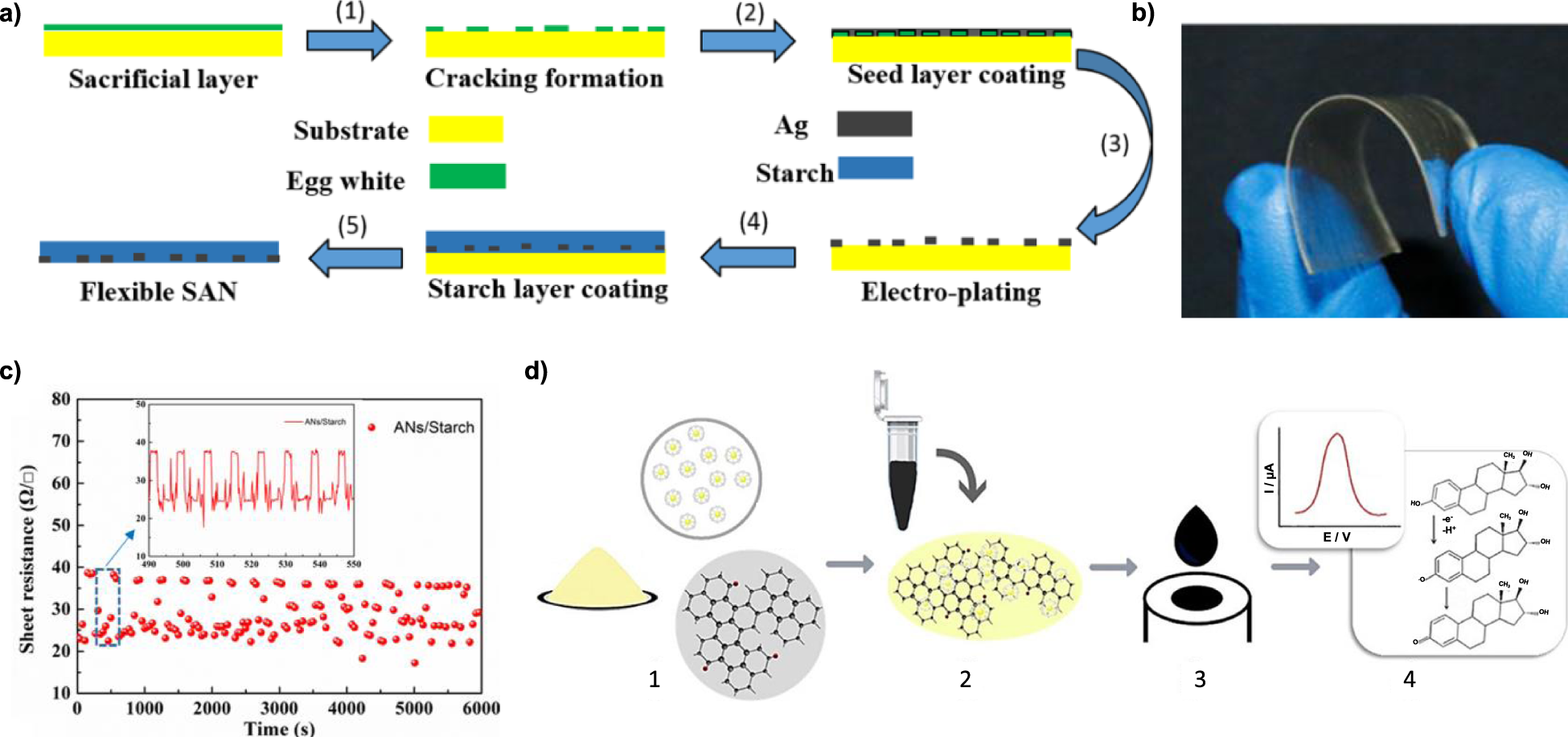

Fig. 3: Flexible strain and chemical sensors based on starch films.

a Fabrication processes and b flexibility demonstration as well as c sheet resistance corresponding to bending times of a sensor based on starch-Ag networks (SANs). Reproduced with permission86. Copyright 2019, Springer. d Preparation protocol of the chemical sensor that detects estriol from RGO-GNPs-PS. Reproduced with permission87. Copyright 2017, Springer.
