Fig. 5: TENGs based on starch films.

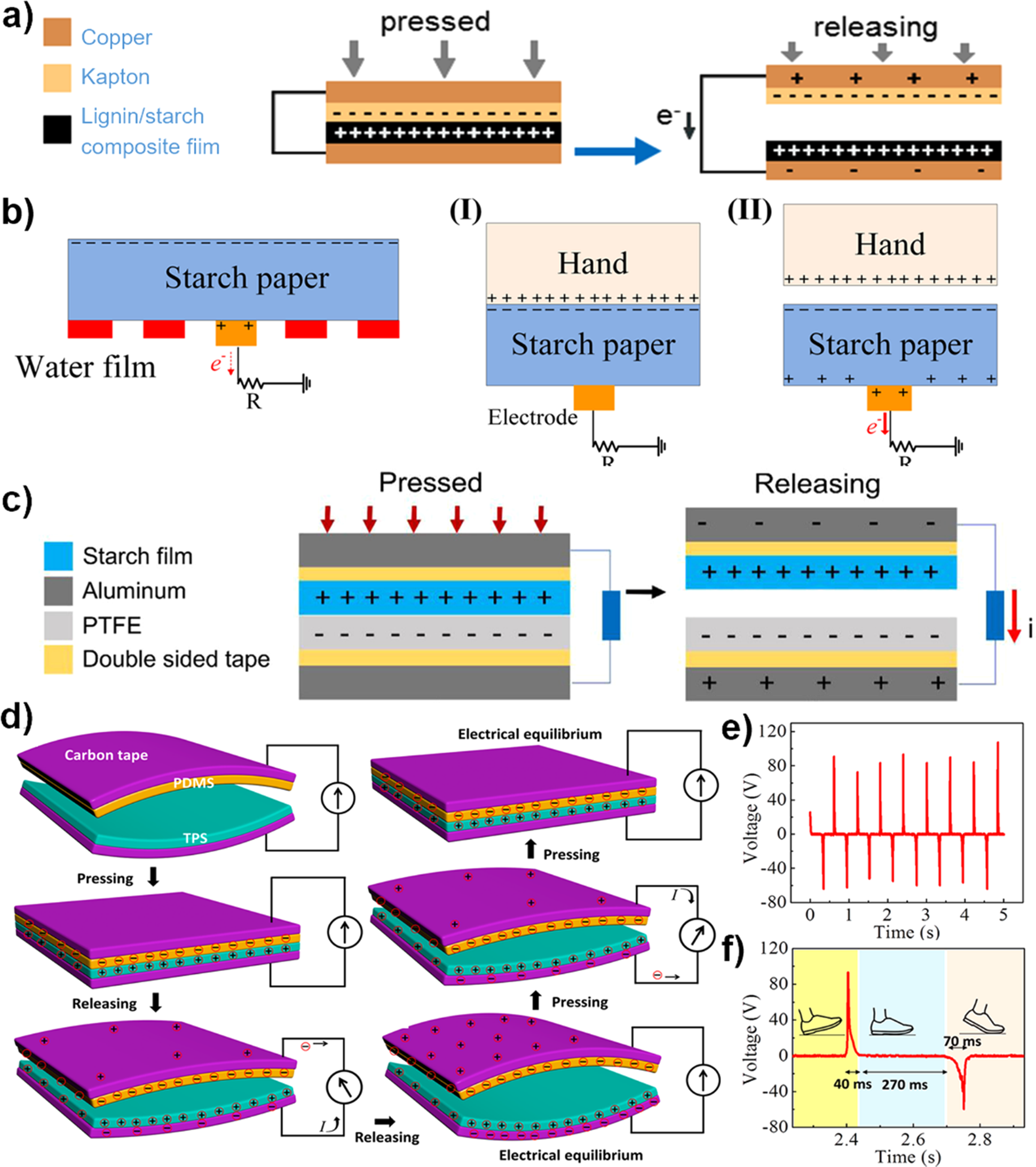

a Mechanism of lignin-starch nanocomposite TENG. Reproduced with permission119. Copyright 2017, American Institute of Physics. b Mechanism of the starch paper-based TENG. Reproduced with permission. Reproduced with permission120. Copyright 2018, Springer. c Mechanism of TENGs based on CaCl2 modified starch film. Reproduced with permission122. Copyright 2019, Elsevier. d Schematic representation of structure and the working principle of TENGs from thermoplastic starch-PDMS and the corresponding outputs for e human walking detection and f gait analysis. Reproduced with permission40 Copyright 2011, American Chemical Society.
