Fig. 1: Illustration of an OFET-based biochemical sensor. | npj Flexible Electronics

Fig. 1: Illustration of an OFET-based biochemical sensor.

From: Solution processed low power organic field-effect transistor bio-chemical sensor of high transconductance efficiency

Fig. 1

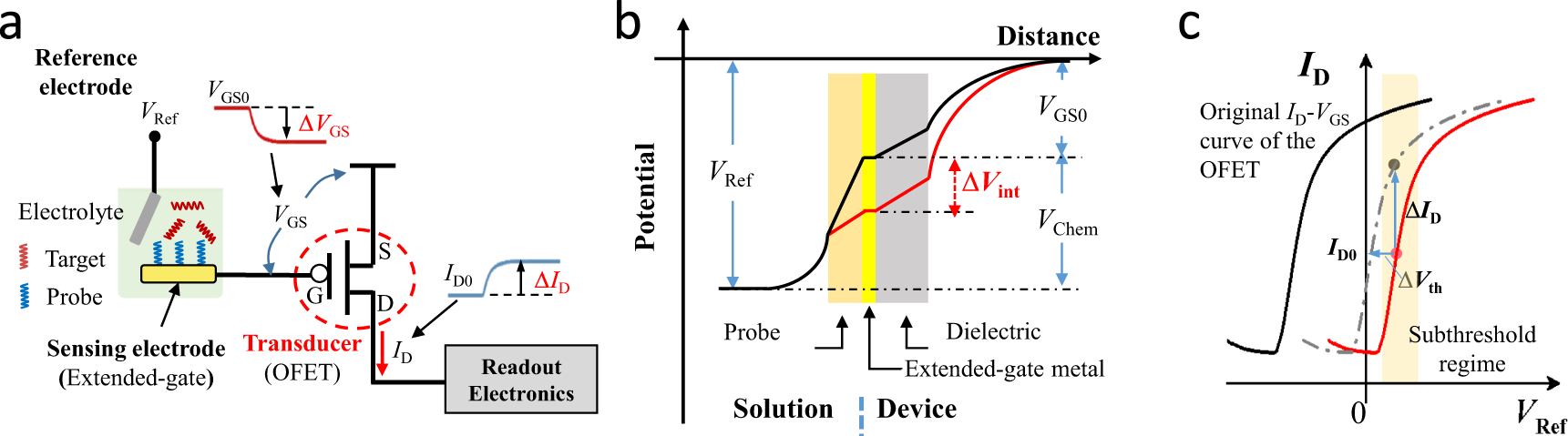

a Schematic of the biosensor design for analyte detection in electrolyte solution. The biosensor consists of an OFET transducer and an extended-gate sensing electrode immobilized with probes. VRef is the bias voltage at the reference electrode (Ag/AgCl). VGS is the resulted gate-to-source voltage on the OFET. ID is the drain current to be measured by the subsequent readout electronic system. b Diagram for potential over a simplified electrochemical cell model with an extended-gate metal as the interfacial material for sensing. The charged molecules captured onto this surface create a potential shift (ΔVint) at the solution/metal interface and thus equal ΔVGS seen from the OFET. c Illustration of the transfer-curve shift from the IDVGS curve of the OFET to the IDVRef curve when the OFET sensor is tested in solution by sweeping VRef, and the induced significant output-current change from the background level (∆ID0) in the subthreshold regime even at a small threshold-voltage shift (∆Vth).
