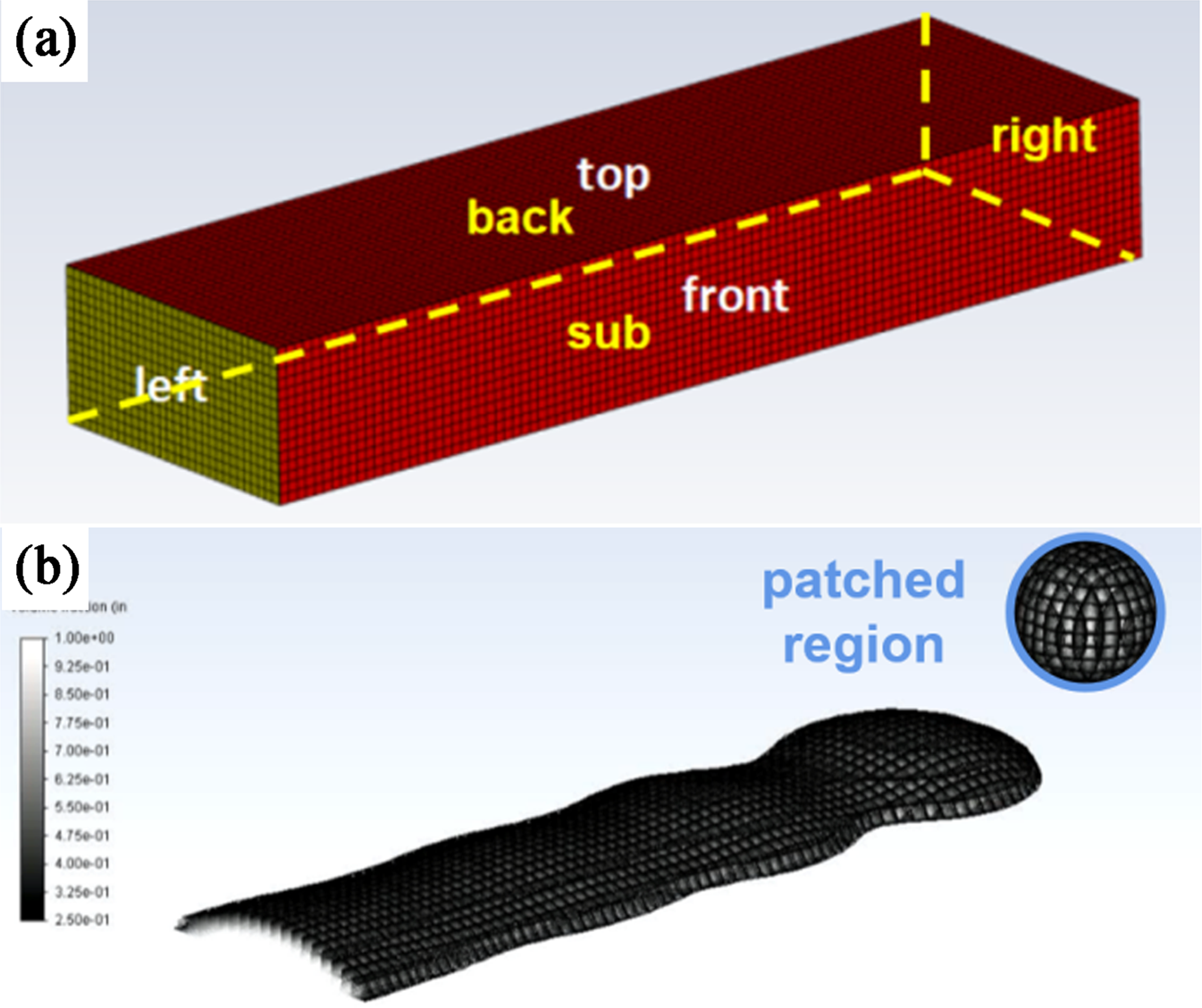

Fig. 1: Overview of the model.
From: Morphology simulation of drop-on-demand inkjet-printed droplets
a Geometry of computational domain and meshes. b Deposited droplets and definition of the spherical droplet. a Is an overview of the computational domain and meshes drawn from ICEM, it is a cuboid divided by hexahedral meshes, and every mesh has dimensions on the 1 µm × 1 µm × 1 µm scale. Every side of the cuboid is named respectively in order to be defined as different types of boundaries in Fluent. b Is drawn from Fluent, which shows the deposited droplets and newly defined droplet region on air with an initial velocity.
