Fig. 5: The instant feedback functions of the artificial system.

From: An artificial neuromorphic somatosensory system with spatio-temporal tactile perception and feedback functions

Fig. 5

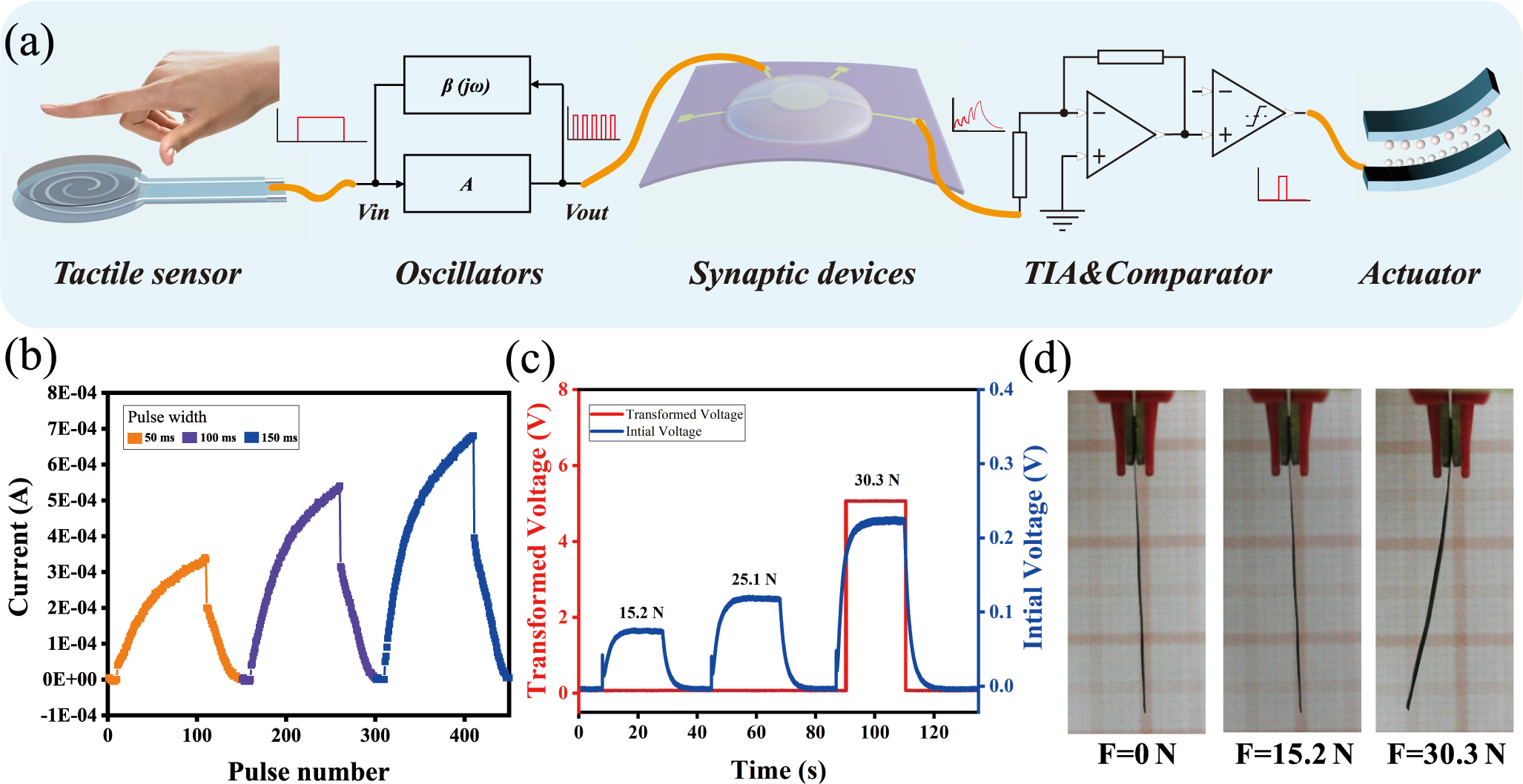

a The schematic of the artificial somatosensory system composing of several main components. b EPSC response of the synaptic transistor triggered by different gate voltage spikes. c The output signal of the TIA (blue curve) and the comparator (red curve) when the artificial system is under different pressure. d The optical photograph of the artificial muscles when the artificial system is under different pressure.
