Fig. 5: Flexible device characterization by STEM and TRPL.

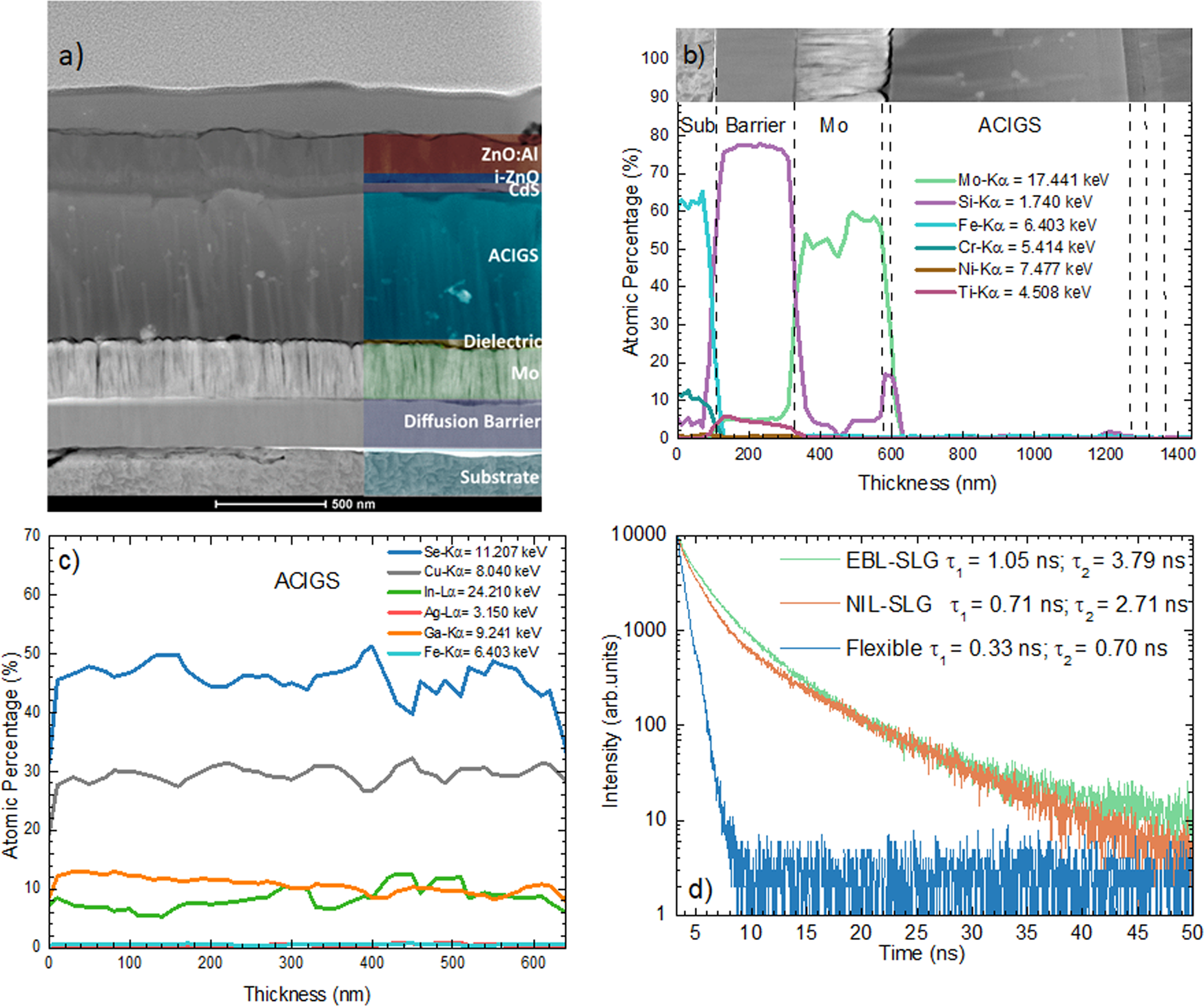

STEM and EDS graph for the flexible device a cross section STEM image for Flexible device with the corresponding layers of the device identified; b EDS line scan for the complete device. For clarity, only the elements present in the substrate, diffusion barrier and Mo contact are shown. The EDS line scan region is shown in the image; c EDS line scan in the ACIGS layer, where the corresponding elements together with Fe are shown; d room temperature TRPL decay for EBL-SLG, NIL-SLG and Flexible. A double exponential decays is observed for all substrates.
