Fig. 3: X-ray scintillation properties of CDSCI.

From: Flash synthesis of high-performance and color-tunable copper(I)-based cluster scintillators for efficient dynamic X-ray imaging

Fig. 3

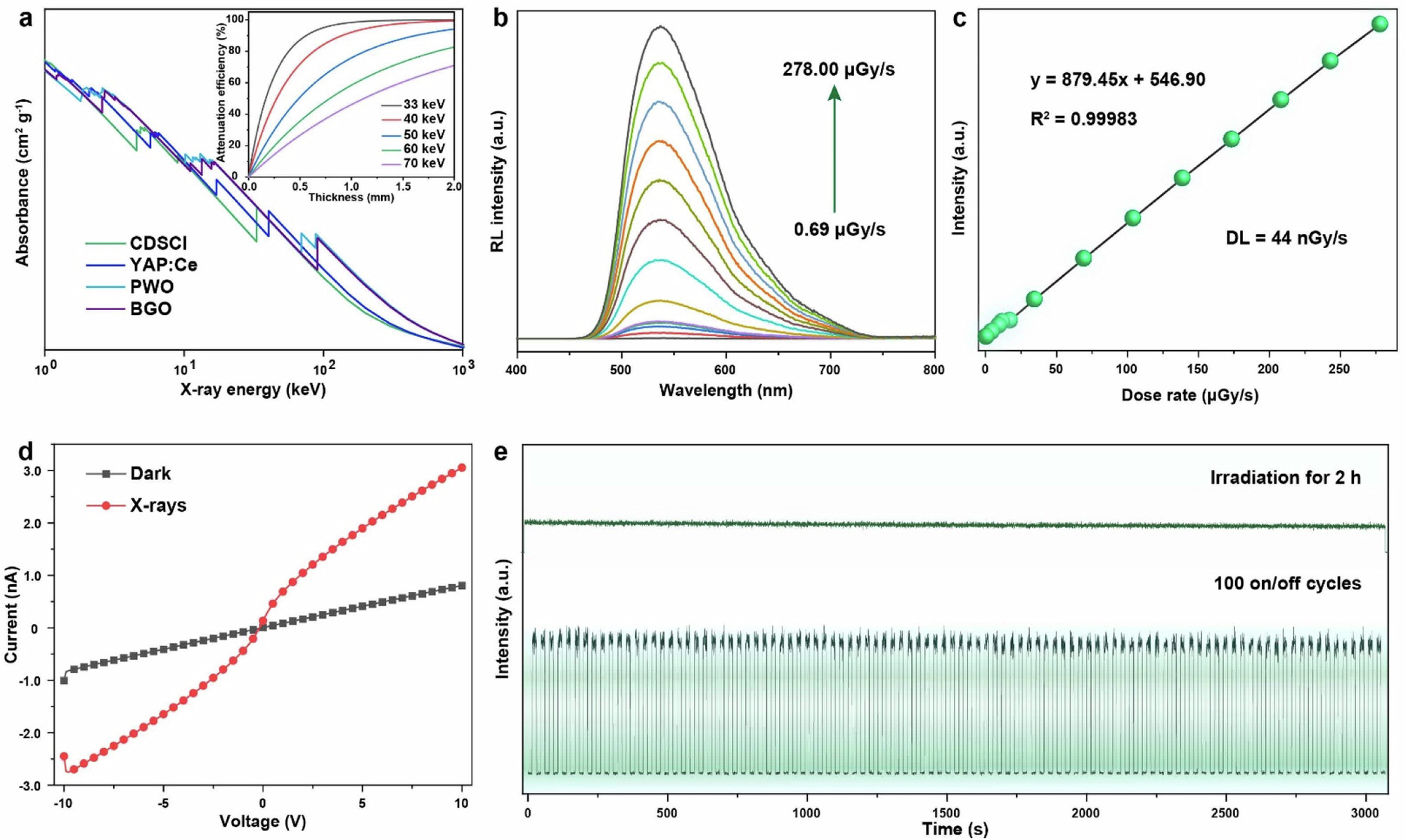

a X-ray absorption coefficients of CDSCI, YAP:Ce, PWO, and BGO as a function of photon energy. The inset illustrates the attenuation efficiency of CDSCI scintillators in relation to thickness under different irradiation conditions. b X-ray-induced RL spectra of CDSCI scintillators at varying dose rates ranging from 0.69 to 278 μGy s−1. c RL intensity presented as a linear function of the dose rate. d Current–voltage curves of CDSCI film observed both with and without X-ray irradiation. e Evaluation of X-ray resistance in CDSCI scintillators, demonstrated through continuous X-ray irradiation for 2 h (top panel) and on-off repeated irradiation for 100 cycles at a dose rate of 2.85 mGy s−1 (bottom panel).
