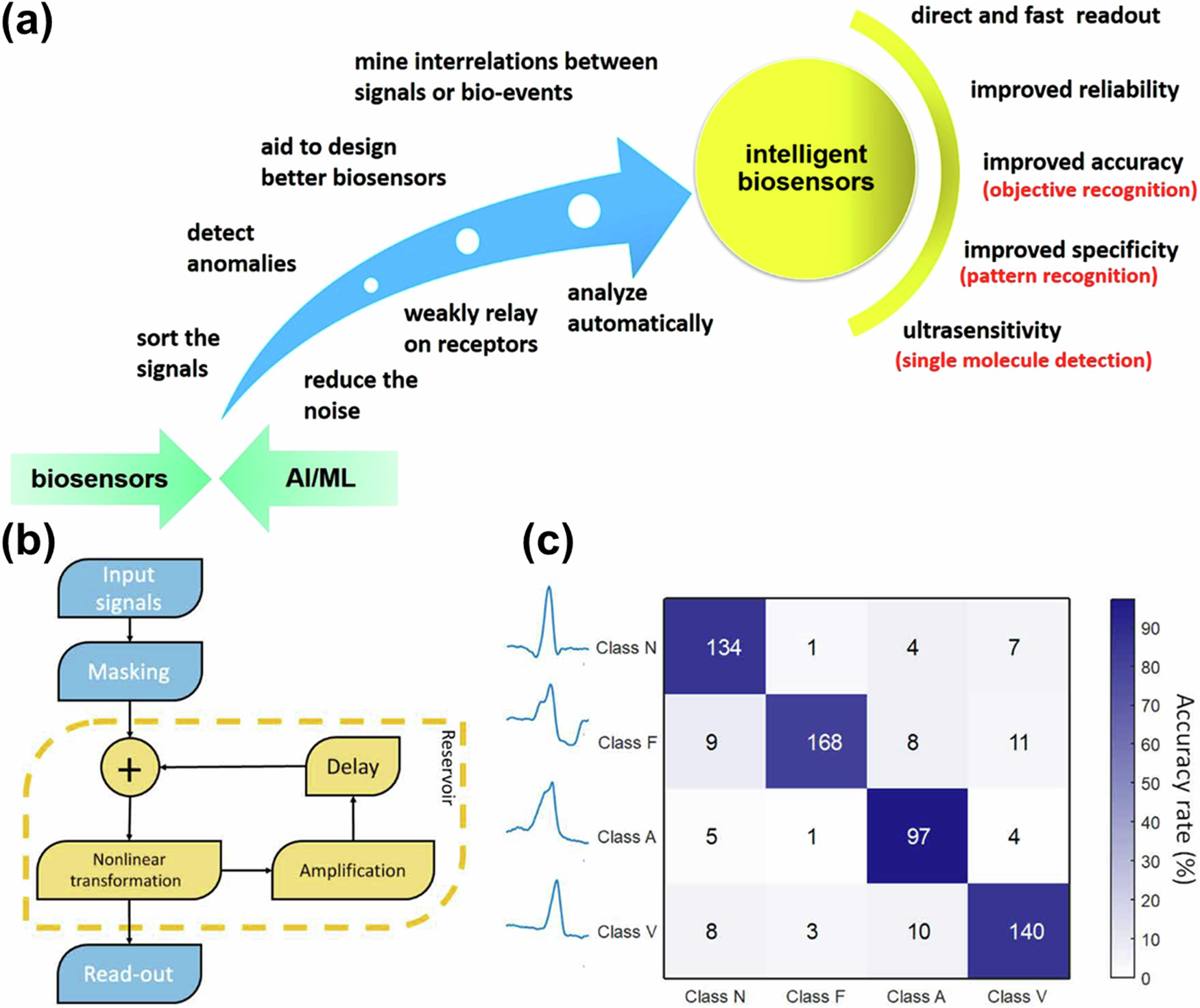

Fig. 20: AI/ML for biosensors.
From: Biomolecule sensors based on organic electrochemical transistors
a Benefits of AI/ML brought to biosensors. Reproduced with permission169. Copyright 2020, American Chemical Society. b Schematics outlining the steps involved in information processing utilizing the networks. c Confusion matrix depicting the classification performance of heartbeats using the delay line measurement: A = 88%. (Class N, F, A, and V indicate normal beats (N), the fusion of ventricular and normal beats (F), atrial premature beats (A), and ventricular premature beats (V), respectively. b, c Reproduced with permission171. American Association for the Advancement of Science.
