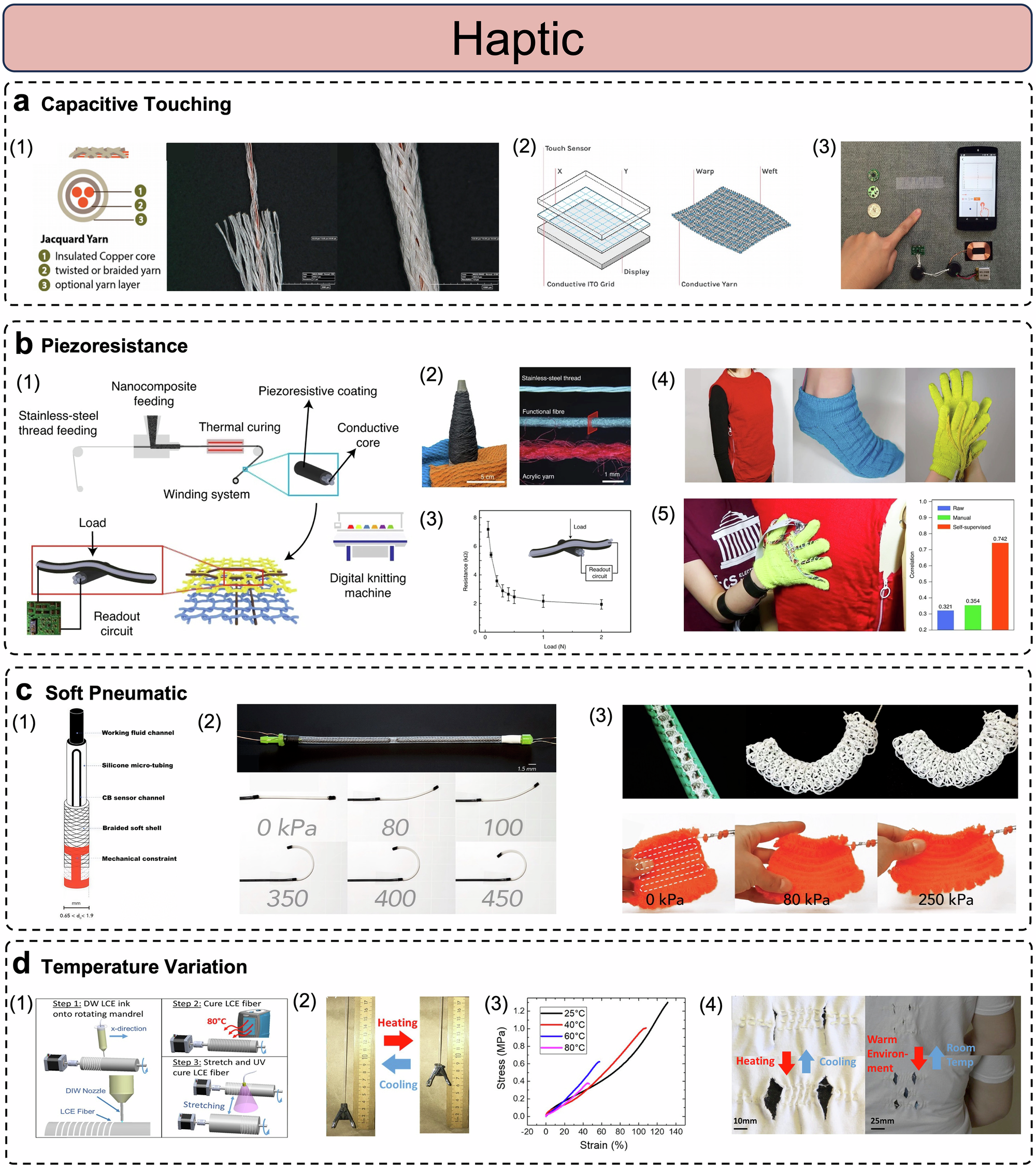

Fig. 5: Intelligent e-textiles based on haptic interaction.
a Capacitive Touching73. (1) Jacquard yarn structure. (2) Textile structure of multitouch capacitive panels. (3) Schematic illustration of human touch interaction. Copyright©2015, ACM. b Piezoresistance74. (1) Schematic of the scalable manufacturing of tactile sensing textiles using a customized coaxial piezoresistive fiber fabrication system and digital machine knitting. (2) The piezoresistive functional fiber (>100 m) and sensing fabrics. (3) The resistance profile of a typical sensor (composed of two piezoresistive fibers) in response to pressure (or normal force). (4) Digitally designed and automatically knitted full-sized tactile sensing wearables: vest, sock, and glove. (5) Procedure for self-supervised correction of the vest using the response of the calibrated glove as the reference. Copyright©2021, Springer Nature. c Soft Pneumatic80. (1) Schematic illustration of Multilayer fiber composite. (2) Temporal shape change from line to varying bending radii curves. (3) Stiffness changing hand-knitted collar and inlay-knitted contractible-bending swatch. Copyright©2021, ACM. d Temperature Variation77. (1) Schematic of the three-step fabrication process of an LCE fiber. (2) Demonstration of the two-way, stress-free actuation of the LCE fiber upon heating and cooling above its TNI. (3) Stress-strain curves of the LCE fiber at various temperatures. (4) Demonstration of the LCE bright shirt demonstrating pores for improved heat transfer and sweat evaporation during exercise. Copyright©2019, ACS.
