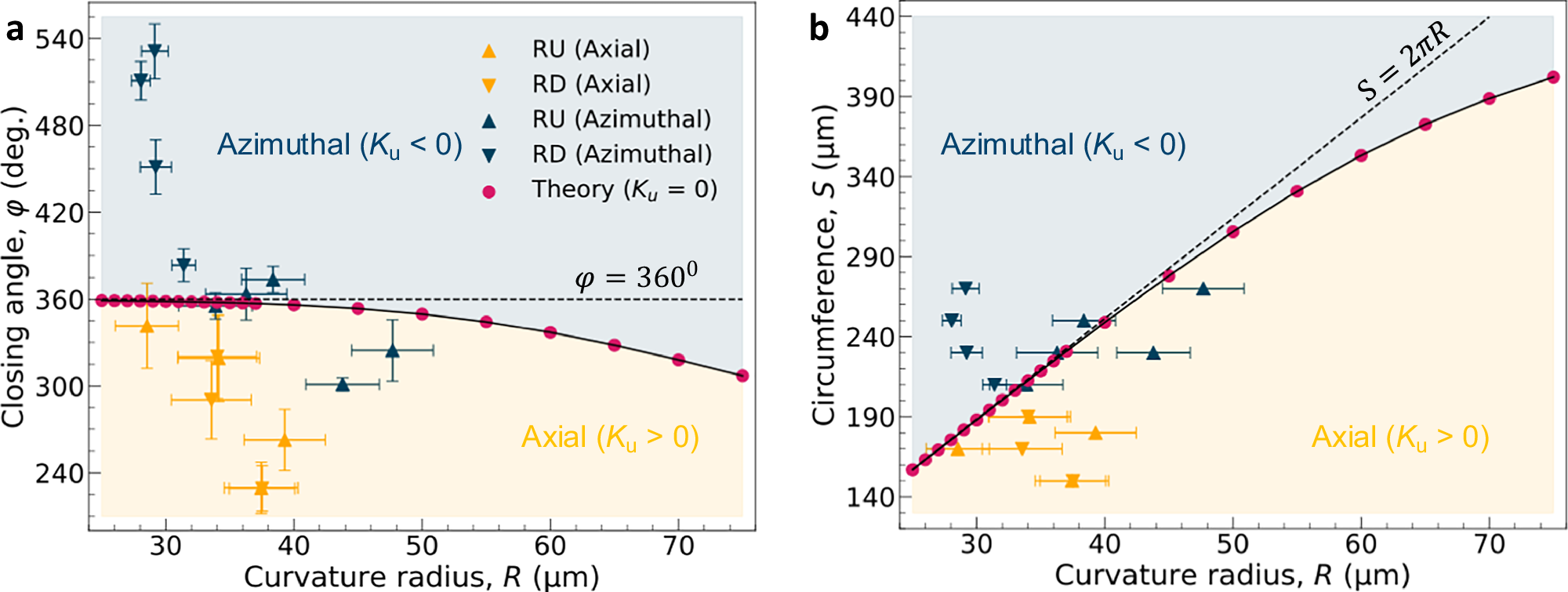

Fig. 6: Comparison between experimental and analytical results.
From: Azimuthal anisotropy induced by partial flux-closure in self-assembled tubular permalloy membranes
Analytically calculated phase boundary (circles in magenta) separating axial (light yellow) and azimuthal (light blue) anisotropy regions presented in a as threshold (a) closing angles φ0 vs R and (b) circumferential length S0 vs R for the curved membrane of length = 480 μm, thickness = 100 nm. Experimental data for rolled-up (RU) and rolled-down (RD) membranes are included, with data points color-coded based on the observed anisotropy: blue indicates azimuthal anisotropy, and yellow represents axial anisotropy.
