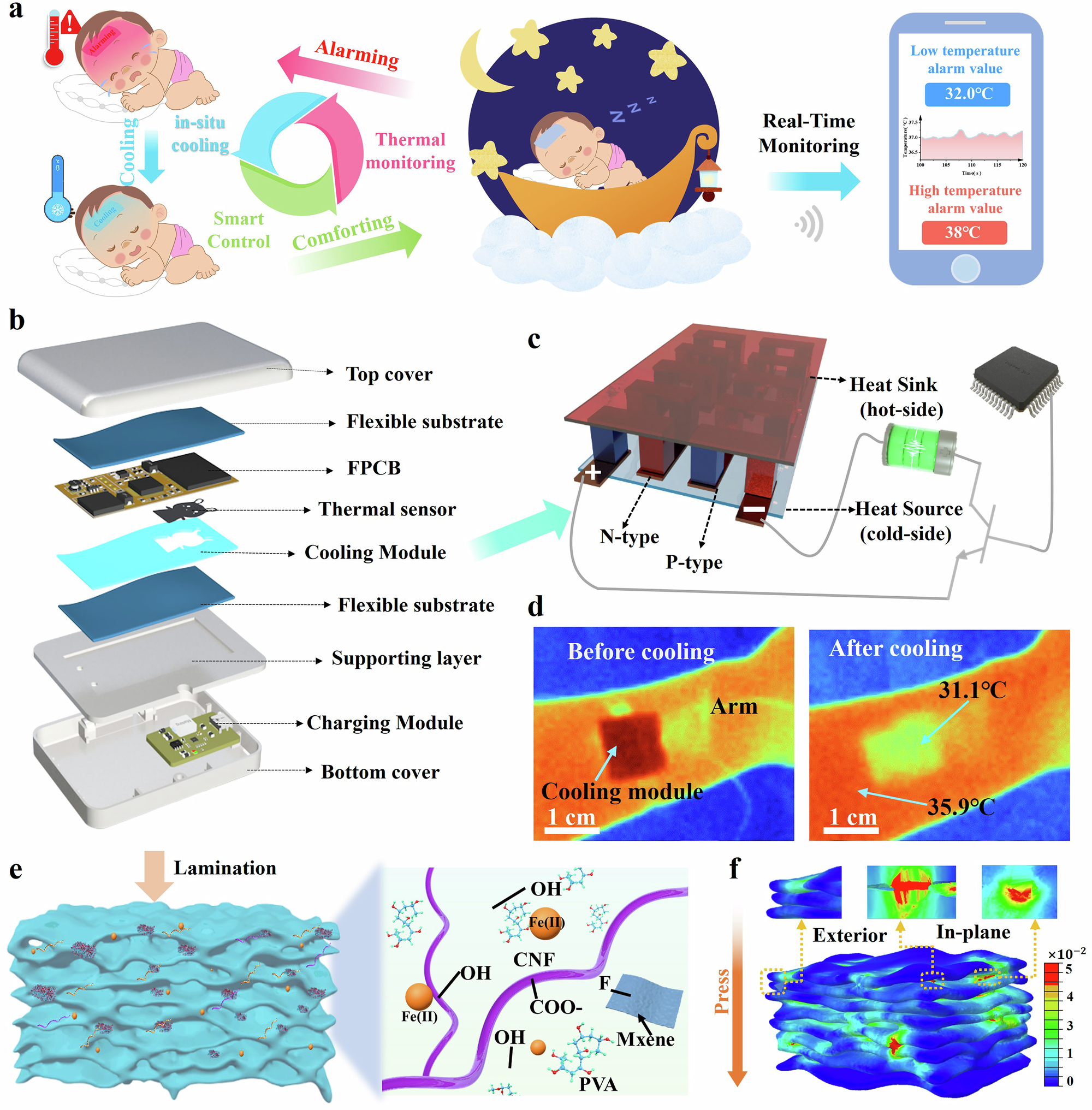

Fig. 1: Schematic of the strain-insensitive temperature patch for infant night care on thermal monitoring and in-situ cooling treatment. | npj Flexible Electronics

Fig. 1: Schematic of the strain-insensitive temperature patch for infant night care on thermal monitoring and in-situ cooling treatment.

From: Strain-insensitive MXene-based wearable temperature patch with integrated thermoelectric cooling for continuous infant thermal monitoring and in-situ treatment

Fig. 1: Schematic of the strain-insensitive temperature patch for infant night care on thermal monitoring and in-situ cooling treatment.

a Applications of the wearable patch for body temperature monitoring, fever alarming, and in-situ cooling treatment. b The designed commercial product and its construction. c Working principle of the thermoelectric refrigeration system. d Infrared images of the hot and cold sides of the cooling module. e Schematic overview of the strain-insensitive thermal sensor via a laminated strategy and spraying Fe(II) for the bonding of the adjacent layers, as well as the interfacial bridging structure. f Finite element analysis of the strain-insensitive mechanism.
