Fig. 2
From: Application of GRAAL model to the resumption of International Simple Glass alteration

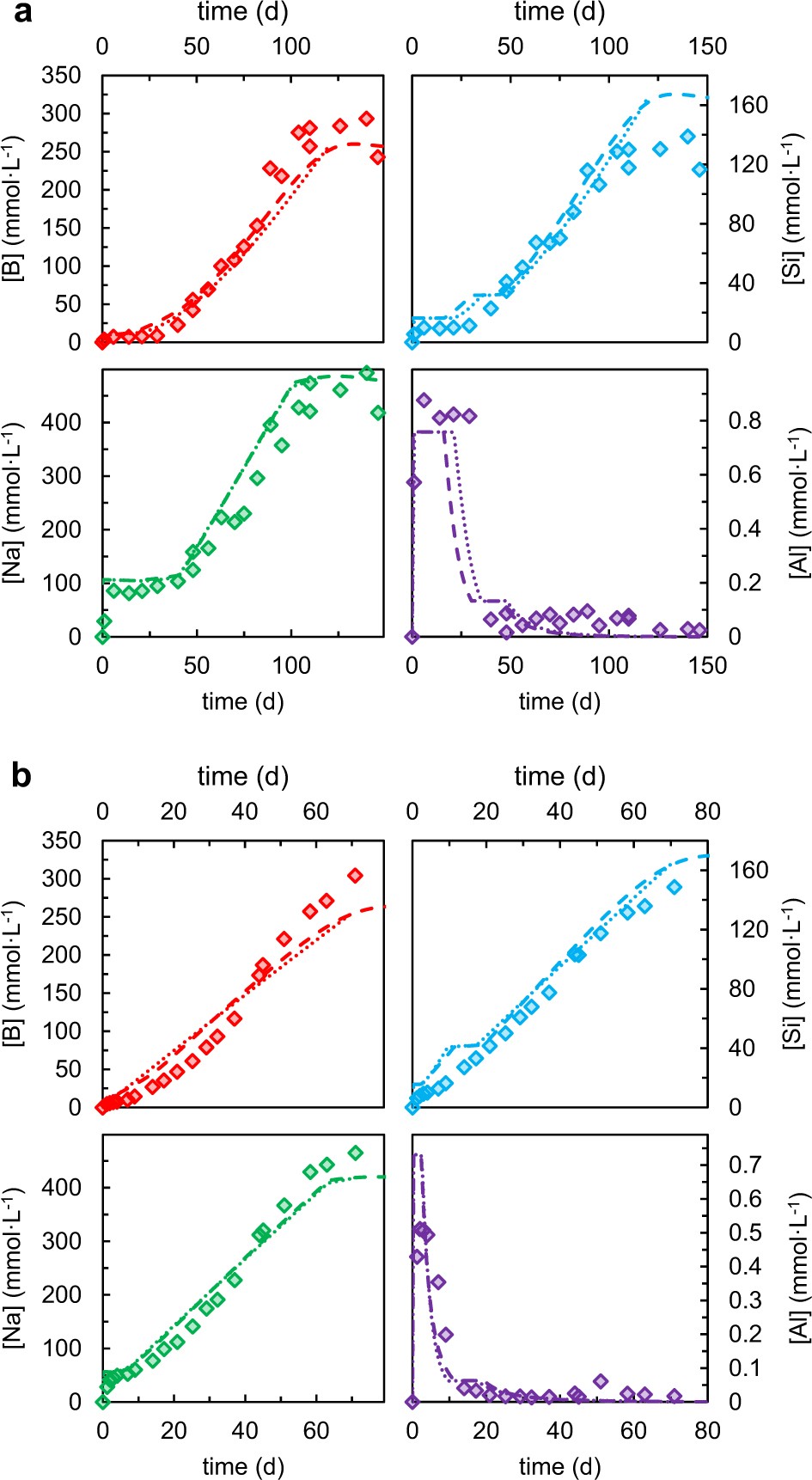

Comparisons between modeled and experimental concentrations. Experimental B, Si, Na, and Al 33 (diamonds) and modeled (dashed line for β = 1 and dotted line for β → 0) concentrations in a unseeded and b seeded tests conducted at pH 10.7 maintained by adding NaOH in static conditions, at 90 °C, S/V = 1770 m−1 (other tested conditions are presented in Supplementary Figs. 4–7)
